Installing High-Temperature Circuit Temperature Sensor
WARNING: This page is about a different variant/trim than selected.

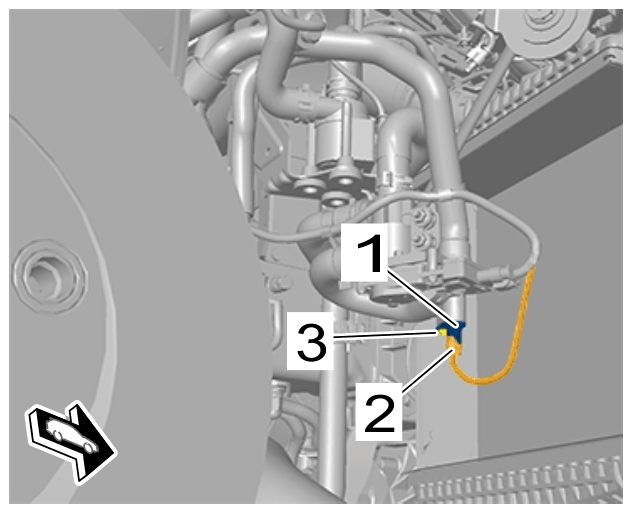

- Install high-temperature circuit temperature sensor -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
High-temperature circuit temperature sensor (TW 11)
- 1.1 Insert high-temperature circuit temperature sensor -1-
.
- 1.2 Fit and tighten screw -3-
.
> Tightening torque 8 Nm (6 ftlb.)
- 1.3 Connect and lock cable plug -2-
.
