Installation Position

WARNING: This page is about a different variant/trim than selected.

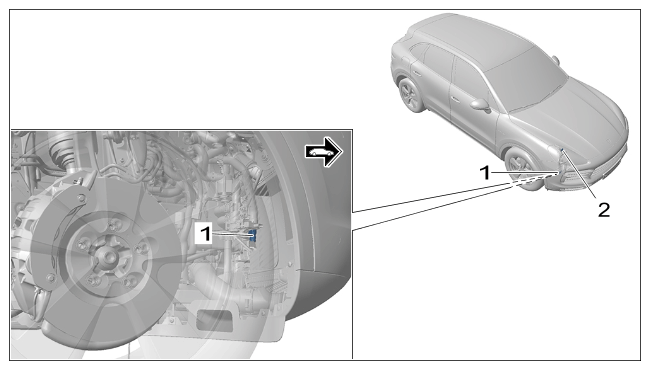

Fig 1: High-Temperature Circuit Temperature Sensor (TW 11) Components Location
G15210289Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

1  High-temperature circuit temperature sensor (TW 11)
2  High-temperature circuit temperature sensor (TW 12)
