Removing Heat EXCHANGER For High-Temperature And Low-Temperature System
WARNING: This page is about a different variant/trim than selected.
WARNING:
Hot fluid
- Danger of scalding
- → Avoid contact with hot fluid.
- → Wear personal protective gear.
- Remove heat exchanger for high-temperature and low-temperature system -1- .

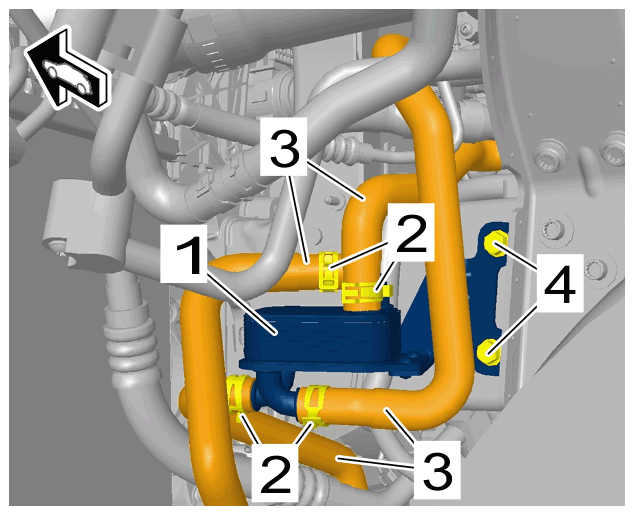

Heat exchanger for high-temperature and low-temperature system
- 1.1 Loosen spring band clamps -2- using > VAS 6890 - spring band clamp pliers and pull off coolant hoses -3- .
- 1.2 Catch escaping coolant and close off line connections using stoppers.
- 1.3 Unscrew and remove screws -4- .
- 1.4 Remove heat exchanger for high-temperature and low-temperature system -1- .
