Installing Heat EXCHANGER For High-Temperature And Low-Temperature System
WARNING: This page is about a different variant/trim than selected.

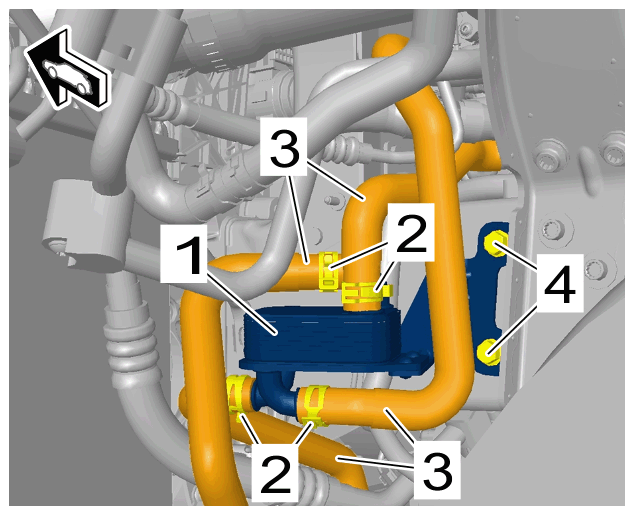

- Install heat exchanger for high-temperature and low-temperature system -1- .
Heat exchanger for high-temperature and low-temperature system
- 1.1 Position heat exchanger for high-temperature and low-temperature system -1- .
- 1.2 Fit and tighten screws -4-
.
> Tightening torque 20 Nm (15 ftlb.)
- 1.3 Push on coolant hoses -3- and tighten spring band clamps -2- using > VAS 6890 - spring band clamp pliers .
