Installing Change-Over Valve For Low-Temperature System (UVW 2)

1. Install change-over valve for low-temperature system -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Change-over valve for low-temperature system (UVW 2)

   1. 1.1 Position change-over valve for low-temperature system -1-  .
   2. 1.2 Fit and tighten nuts -5-  .
   3. 1.3 Connect and lock cable plug -4-  .
   4. 1.4 Push on coolant hoses -3-  and tighten spring band clamps -2-  using > VAS 6890 - spring band clamp pliers  .
2. Install coolant reservoir holder -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

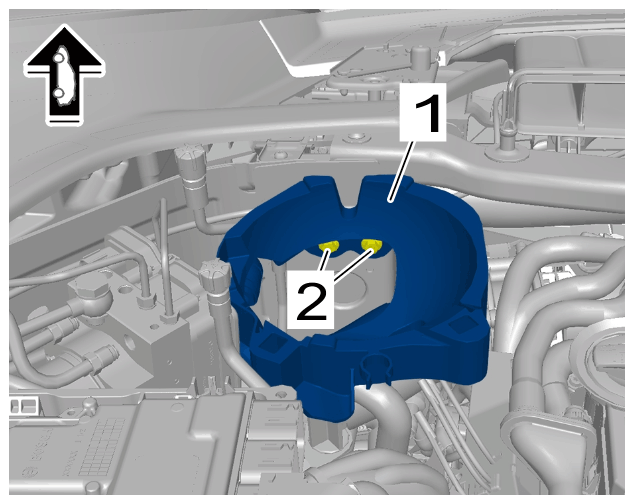

Coolant reservoir holder (UVW 2)

1. 2.1 Position coolant reservoir holder -1-  .
2. 2.2 Fit and tighten screws -2-  .
