Installation Position

WARNING: This page is about a different variant/trim than selected.

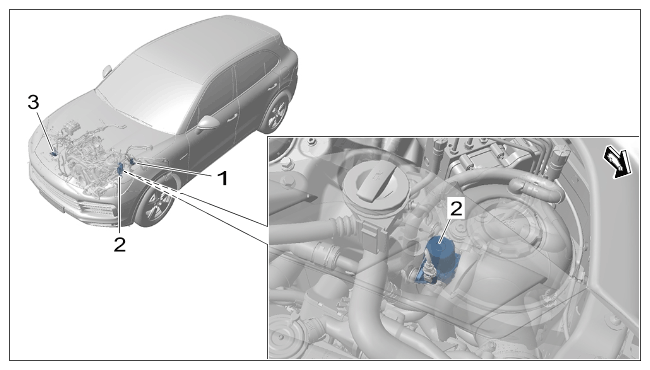

Fig 1: Change-Over Valve For Low-Temperature System (UVW 2) Components Location
G15210272Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

1  Change-over valve for low-temperature system (UVW 1)
2  Change-over valve for low-temperature system (UVW 2)
3  Change-over valve for high-temperature system (UVW 3)
