Removing Change-Over Valve For Low-Temperature System

WARNING: This page is about a different variant/trim than selected.

WARNING: Hot fluid

Danger of scalding
1. → Avoid contact with hot fluid.
2. → Wear personal protective gear.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

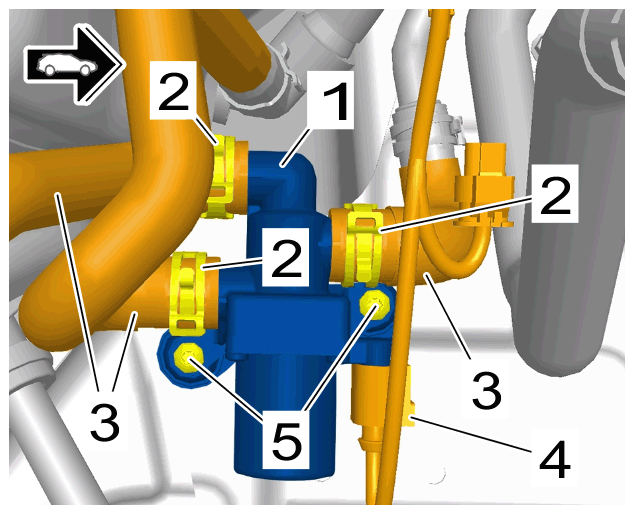

Change-over valve for low-temperature system (UVW 1)

1.1 Loosen spring band clamps -2- using > VAS 6890 - spring band clamp pliers and pull off coolant hoses -3- .
1.2 Catch escaping coolant and close off line connections using suitable stoppers.
1.3 Release and disconnect cable plug -4- .
1.4 Remove screws -5- .
1.5 Remove change-over valve for low-temperature system -1- .
