Installing Change-Over Valve For Low-Temperature System
WARNING: This page is about a different variant/trim than selected.

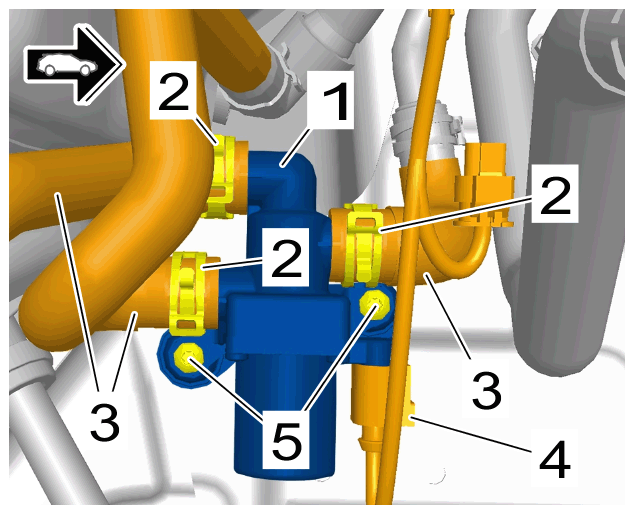

- Install change-over valve for low-temperature system -1- .
Change-over valve for low-temperature system (UVW 1)
- 1.1 Fit change-over valve for low-temperature system -1- .
- 1.2 Fit and tighten screws -5-
.
> Tightening torque 8 Nm (6 ftlb.)
- 1.3 Connect and lock cable plug -4- .
- 1.4 Push on coolant hoses -3- and tighten spring band clamps -2- using > VAS 6890 - spring band clamp pliers .
