Installing Change-Over Valve For High-Temperature System (UVW 3)
WARNING: This page is about a different variant/trim than selected.
- Install change-over valve for low-temperature system -1- .

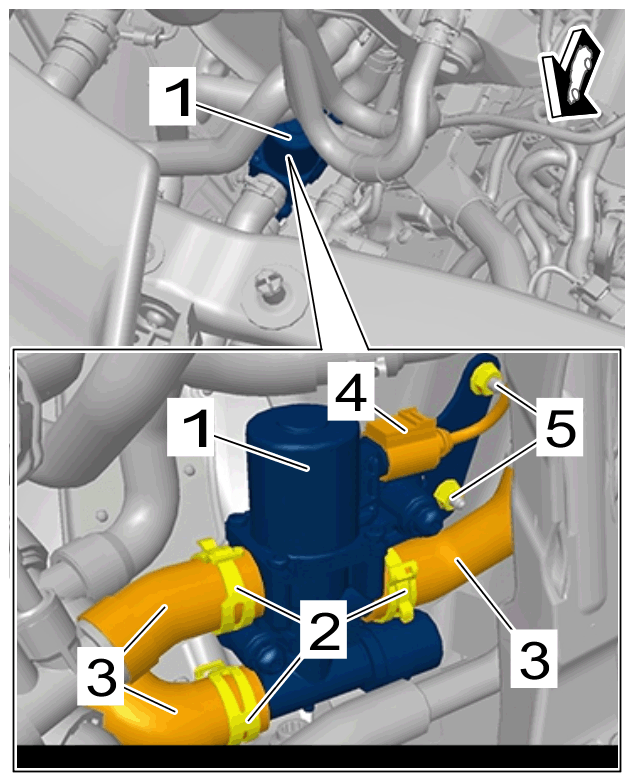

Change-over valve for low-temperature system (UVW 3)
- 1.1 Position change-over valve for low-temperature system -1- .
- 1.2 Screw on and tighten nuts -5-
.
> Tightening torque 8 Nm (6 ftlb.)
- 1.3 Connect and lock cable plug -4- .
- 1.4 Push on coolant hoses -3- and tighten spring band clamps -2- using > VAS 6890 - spring band clamp pliers .
