Installing Radiator For Low-Temperature System

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Radiator for low-temperature system

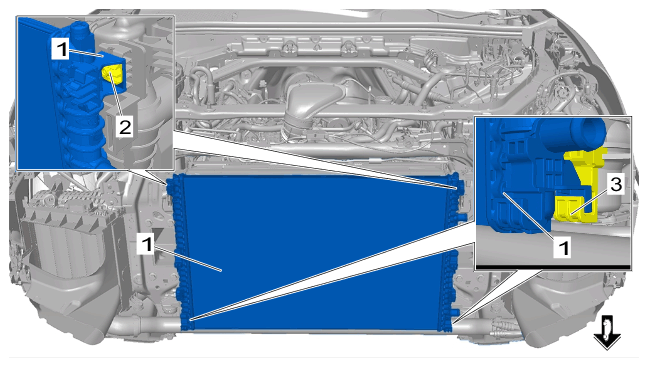

1. 1.1 Guide radiator for low-temperature system -1-  into the holders -3-  from above.
2. 1.2 Guide radiator for low-temperature system -1-  to the rear into the locking lugs -2-  .
3. 1.3 Check that the locking lugs -2-  are locked correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant hoses

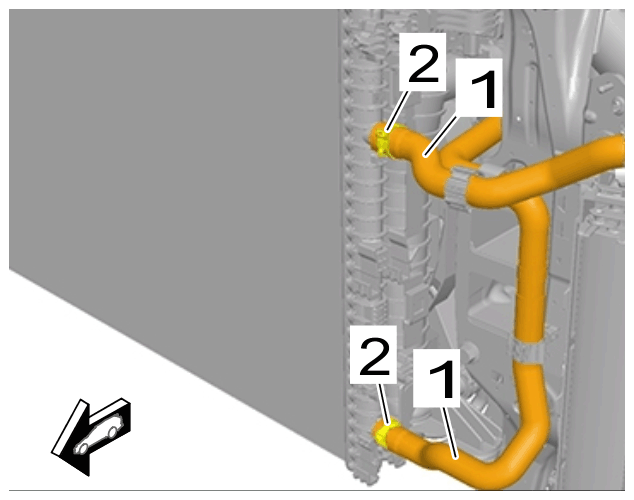

1. 2.1 Push on coolant hoses -1-  .
2. 2.2 Fasten spring band clamps -2-  using > VAS 6890 - spring band clamp pliers  .
