Removing Directional-Control Valve For High-Temperature System
WARNING: This page is about a different variant/trim than selected.
WARNING:
Hot fluid
- Danger of scalding
- → Avoid contact with hot fluid.
- → Wear personal protective gear.

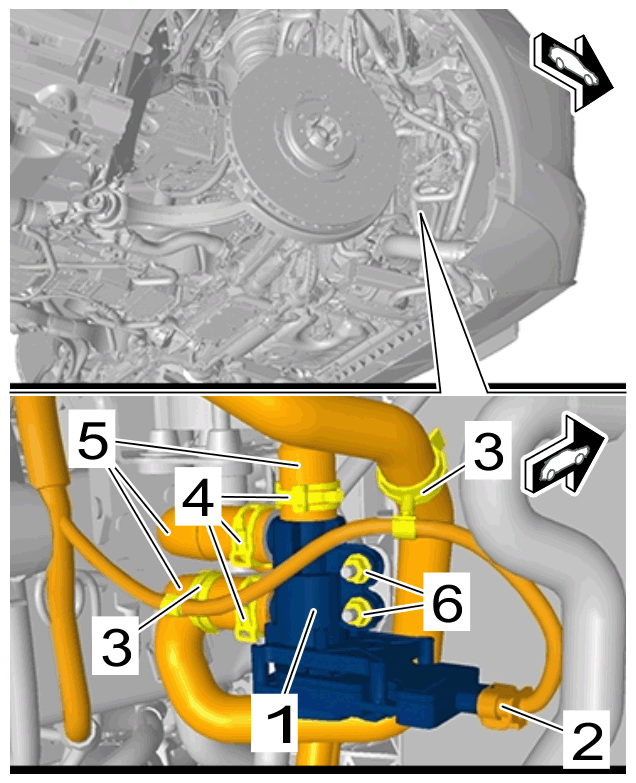

- Remove directional-control valve for high-temperature system -1- .
Directional-control valve for high-temperature system (WMV 1)
- 1.1 Release and disconnect cable plug -2- .
- 1.2 Loosen clips -3- from coolant hose.
- 1.3 Loosen spring band clamps -4- using > VAS 6890 - spring band clamps pliers .
- 1.4 Pull off coolant hoses -5- .
- 1.5 Catch escaping coolant and close off line connections using suitable stoppers.
- 1.6 Unscrew nuts -6- .
