Installing Directional-Control Valve For High-Temperature System

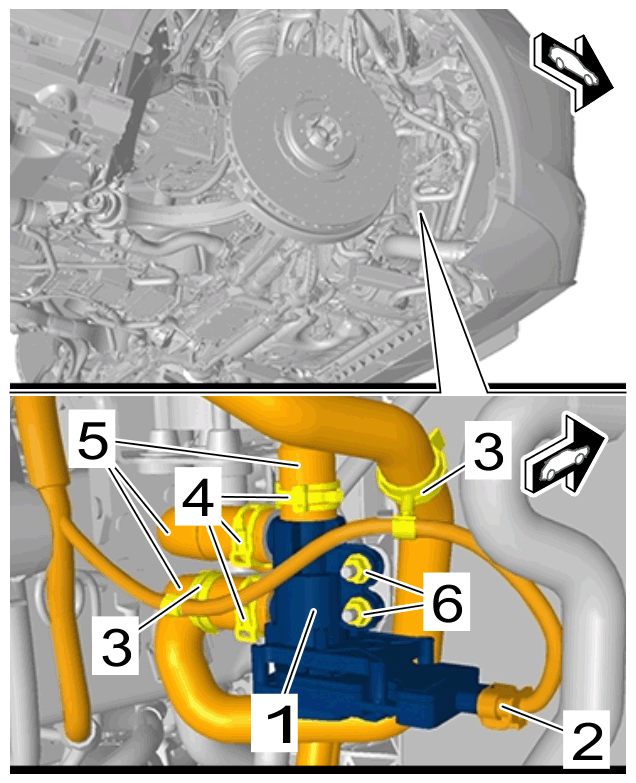

1. Install directional-control valve for high-temperature system -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Directional-control valve for high-temperature system (WMV 1)

1. 1.1 Position directional-control valve for high-temperature system -1-  .
2. 1.2 Screw on and tighten nuts -6-  .

   > Tightening torque 8 Nm (6 ftlb.)

3. 1.3 Connect coolant hoses -5-  .
4. 1.4 Fasten spring band clamps -4-  using > VAS 6890 - spring band clamp pliers  .
5. 1.5 Fasten clips -3-  on coolant hose.
6. 1.6 Connect and lock cable plug -2-  .
