Removing Additional Coolant Pump For Low-Temperature System (P2)

1. For vehicles with particle filter:

   Unscrew union nuts on differential pressure sensor lines -1-  and set them aside with lines -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

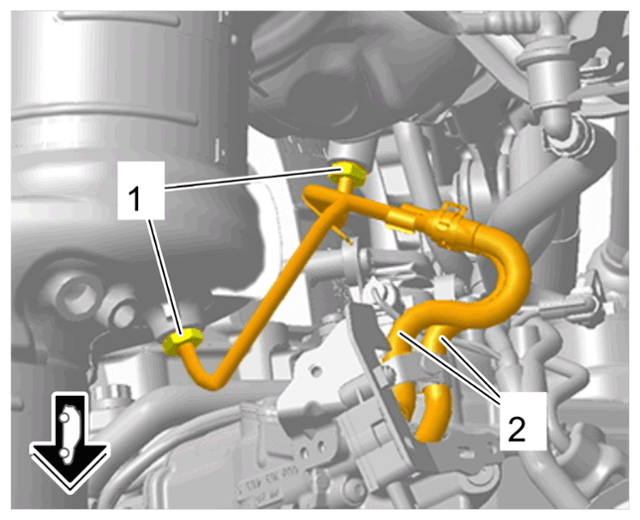

   Union nuts on differential pressure sensor lines

2. Unscrew nuts -2-  , disconnect the coolant pipe -1-  from the body and set it aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

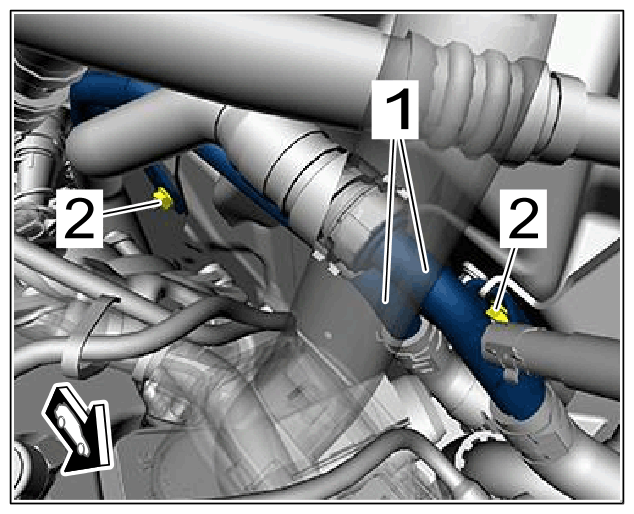

   Coolant pipes on body

3. Remove additional coolant pump for low-temperature system -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

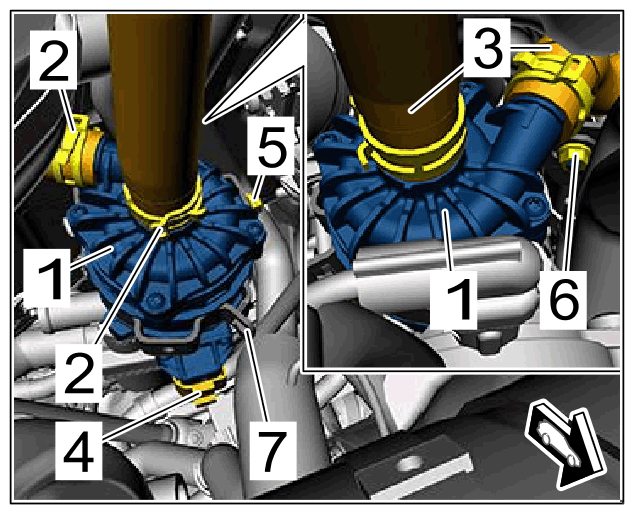

Coolant pump for low-temperature circuit (P2)

1. 3.1 Release spring band clamps -2-  using > VAS 6890 - spring band clamp pliers  and remove coolant hoses -3-  .
2. 3.2 Catch escaping coolant and close off line connections using suitable stoppers.
3. 3.3 Release electric plug connection -4-  and disconnect it.
4. 3.4 Unclip clip -5-  .
5. 3.5 Unscrew nuts -6-  .
6. 3.6 Open holder -7-  and remove additional coolant pump for low-temperature system -1-  .
