Installation Position

WARNING: This page is about a different variant/trim than selected.

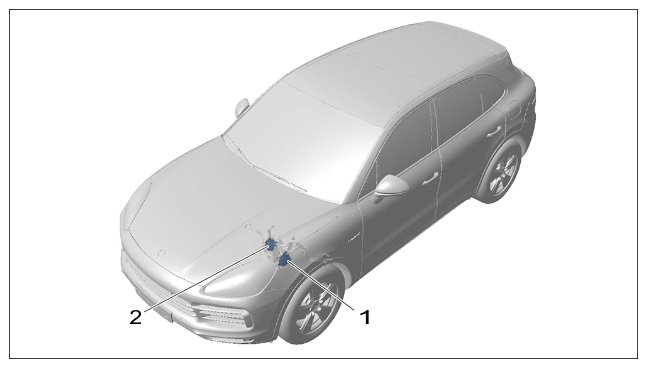

Fig 1: Additional Coolant Pump For Low-Temperature System Components Location
G15210204Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

1  Additional coolant pump for low-temperature circuit (P1)
2  Additional coolant pump for low-temperature circuit (P2)
