Subsequent Work

Information

• The cap on the coolant reservoir is secured with a seal.
• After opening the cap, it must be secured with a new seal.
• The seal can be ordered as a spare part in the Porsche Parts Information.

1. Close the coolant reservoir -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

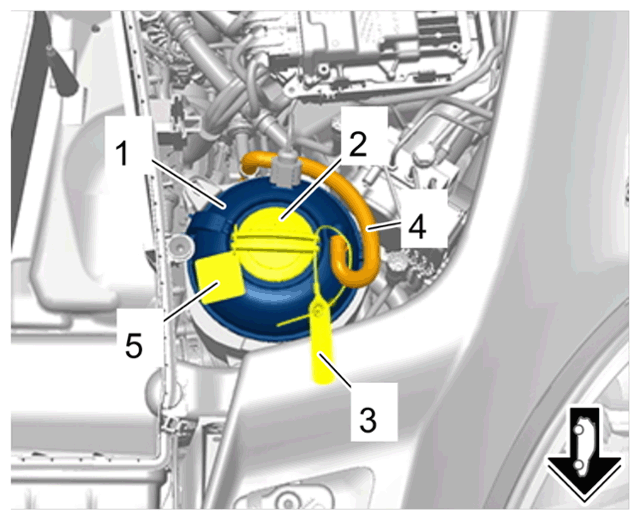

   Coolant reservoir for low-temperature cooling system

   1. 1.1 Close the cap on the coolant reservoir -2-  .
   2. 1.2 Wrap new seal -3-  through the bore on the cap -2-  and around the coolant hose connection -4-  .
   3. 1.3 Close new seal -3-  .
   4. 1.4 Check whether the indication sticker -5-  is attached and attach it if necessary.

      The indication sticker can be ordered in the Porsche Parts Information if necessary.

2. Install cover for centre underbody.

   > Refer to the appropriate service information.

3. Install engine cover.

   > Refer to WM, 108319 REMOVING AND INSTALLING ENGINE COVER (DESIGN COVER) (V6 TURBO)

4. Install cover on high-voltage power electronics -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

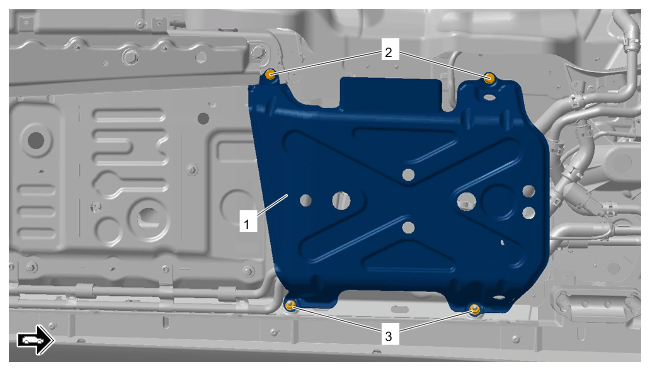

Cover on high-voltage power electronics

1. 4.1 Move cover for high-voltage power electronics -1-  into installation position.
2. 4.2 Tighten screws -2-  .

   > Tightening torque 25 Nm (19 ftlb.)

3. 4.3 Tighten nuts -3-  .

   > Tightening torque 25 Nm (19 ftlb.)
