Subsequent Work

WARNING: This page is about a different variant/trim than selected.

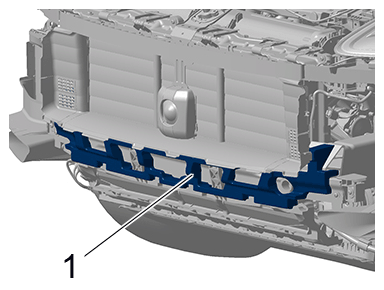

Install sound absorber on bumper -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sound absorber on bumper

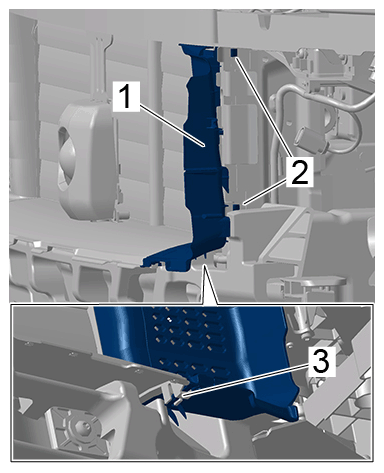

Install side part of front air guide -1- at the left and right.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side part of front air guide
Install front apron.
> 631519 REMOVING AND INSTALLING FRONT APRON

Information

If the component is replaced, perform adaptation using the PIWIS Tester.
Perform adaptation. Follow the procedure on the Tester and comply with instructions.
1. 4.1 Path: DME control unit --> Maintenance/repairs --> Adaptation
