Removing Thermal Management Control Unit
WARNING: This page is about a different variant/trim than selected.

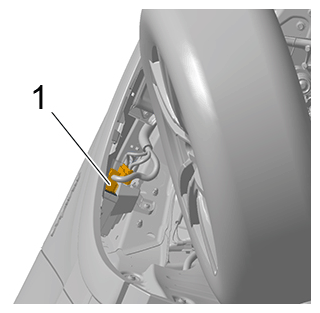

- Release and unplug electric plug connection -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Electric plug connection

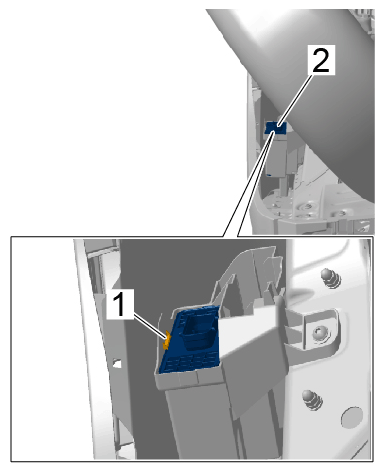

- Loosen locking lug -1-
and pull thermal management control unit -2-
out of the holder.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Locking lug
