Subsequent Work

Only for lower air guide:

1. Install (lower) cooling-air flaps.

   > 193519 REMOVING AND INSTALLING (LOWER) COOLING-AIR FLAPS

   Only for side part of front air guide:

2. Install cross member.
   1. 2.1 Position cross member.
   2. 2.2 Clip in cross member.

      Only for side part of front air guide:

3. Install headlight mounting -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

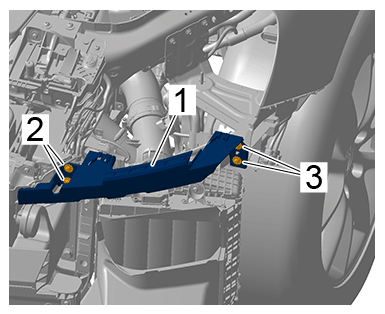

   Headlight mounting

   1. 3.1 Position headlight mounting -1-  .
   2. 3.2 Screw in fastening screws -2-  and tighten to > Tightening torque 3 Nm (2 ftlb.)  .
   3. 3.3 Screw in fastening screws -3-  and tighten to > Tightening torque 3 Nm (2 ftlb.)  .

      Only for side part of front air guide:

4. Install headlight.

   > 941519 REMOVING AND INSTALLING HEADLIGHTS

5. Install front apron.

   > 631519 REMOVING AND INSTALLING FRONT APRON
