Removing Front Air Guide

1. Remove side part of front air guide -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

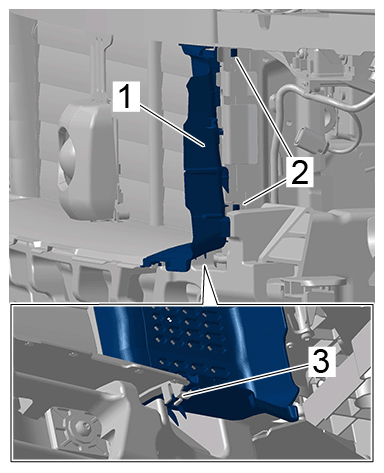

   Side part of front air guide

   1. 1.1 Unclip top clips -2-  and bottom clip -3-  on side part of front air guide -1-  .
   2. 1.2 Remove side part of front air guide -1-  .
2. Remove sound absorber on bumper -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sound absorber on bumper

3. Remove lower part of air guide -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

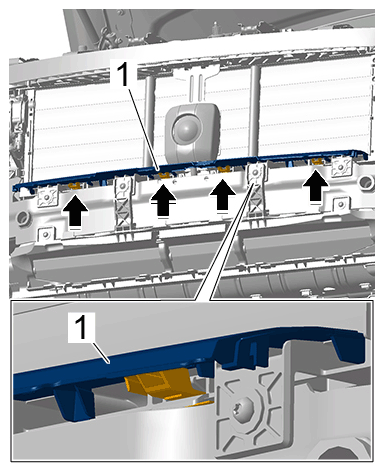

   Lower part of air guide

   1. 3.1 Unclip lower part of air guide -1-  using a suitable tool -Arrows-  .
   2. 3.2 Remove lower part of air guide -1-  .
4. Remove air guide at the bottom -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

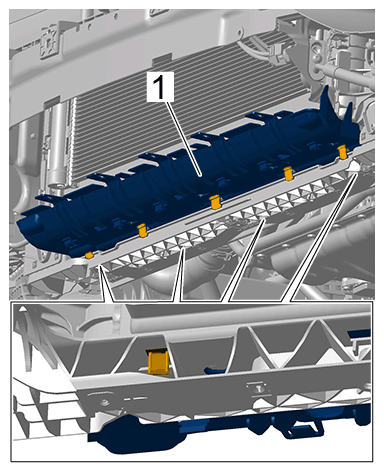

Lower air guide

1. 4.1 Unclip lower air guide -1-  in the area marked in yellow.
2. 4.2 Remove lower air guide -1-  .
