Preliminary Work

> 631519 REMOVING AND INSTALLING FRONT APRON

Only for side part of front air guide:

> 941519 REMOVING AND INSTALLING HEADLIGHTS

Only for side part of front air guide:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

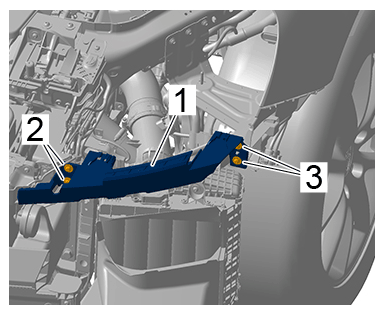

Headlight mounting

1. 3.1 Unscrew fastening screws -2 and 3-  .
2. 3.2 Remove headlight mounting -1-  .

   Only for side part of front air guide:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

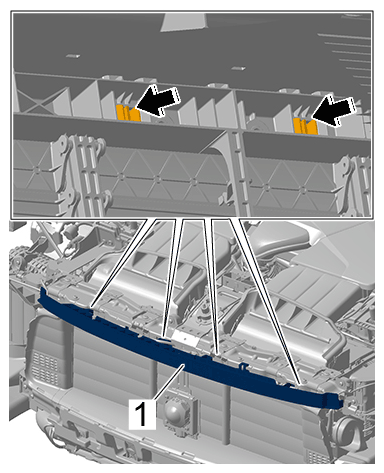

Cross member

1. 4.1 Unclip cross member -1-  (-Arrows-).
2. 4.2 Set cross member -1-  with electric lines connected down on the lock carrier.

   Only for lower air guide:

> 193519 REMOVING AND INSTALLING (LOWER) COOLING-AIR FLAPS
