Subsequent Work

1. Check engine coolant level and correct it if necessary.
2. Read out the fault memories of all control units, work through any fault entries and then clear the fault memories.
3. Remove battery charger.

   > 2X00IN TRICKLE CHARGING 12-VOLT LITHIUM-ION BATTERY

4. Test-drive the vehicle and then check the engine coolant level in the reservoir.
5. Close the coolant reservoir -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

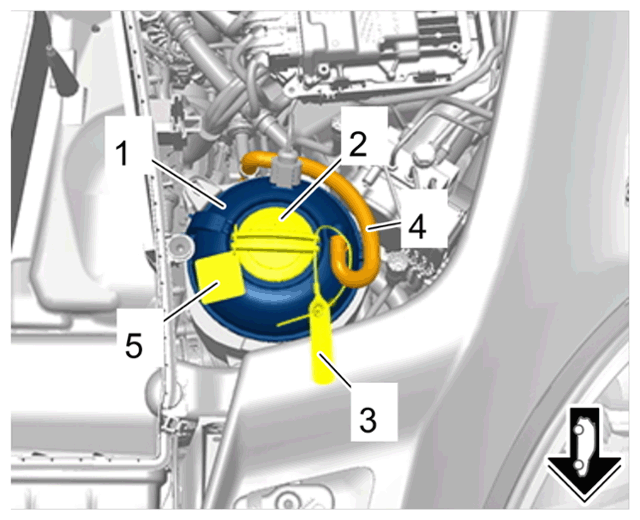

Coolant reservoir for low-temperature cooling system

1. 5.1 Close the cap on the coolant reservoir -2-  .
2. 5.2 Wrap seal -3-  through the bore on the cap -2-  and around the coolant hose connection -4-  .
3. 5.3 Close off seal -3-  .
4. 5.4 Check that the warning sign -5-  is attached and attach it if necessary.
