Installing Strut
WARNING: This page is about a different variant/trim than selected.
- Install strut
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

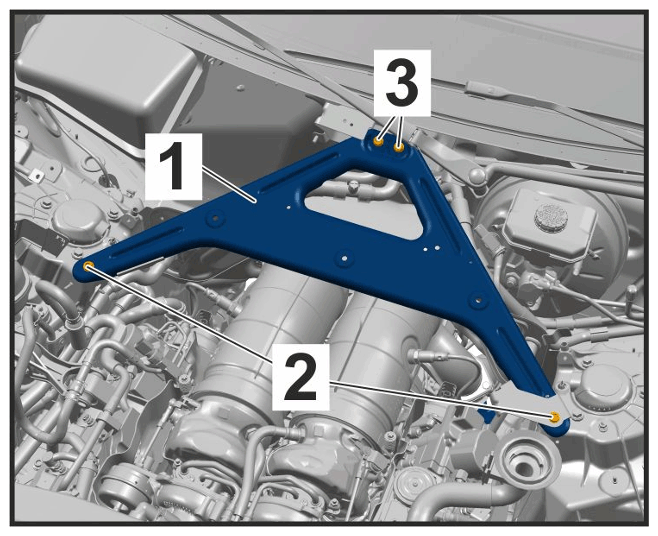

Strut (A-strut)
- 1.1
Position strut
- 1.2
Fit screws -2 and 3-
.
- 1.3
Tighten screws -2-
.
> Tightening torque 25 Nm (18.4 ftlb.)
- 1.4
Tighten screws -3-
.
> Tightening torque 25 Nm (18.4 ftlb.)
