Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Nuts on housing for external power connection	Item 2	Tightening torque	3 Nm (2 ftlb.)

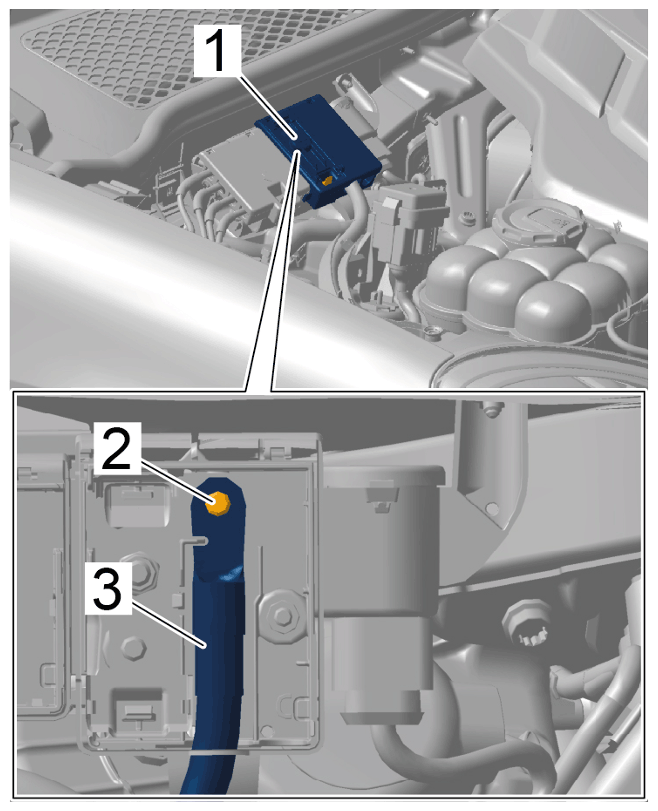

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Housing for positive terminal
Fastening nut on external	Item 2	Tightening	20 Nm (14.8
power connection		torque	ftlb.)

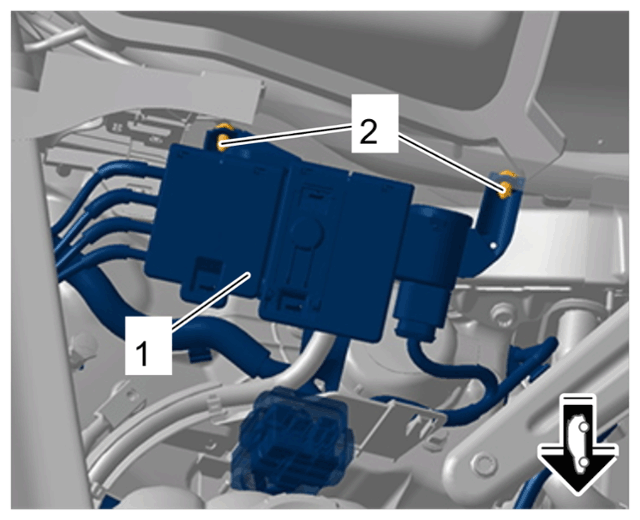

Courtesy of PORSCHE CARS NORTH AMERICA, INC. External power connection cover
Spring strut to body	Hexagon-head bolt, M8 x 34/always replace bolts following removal!	Initial tightening	20 Nm (15 ftlb.)
Spring strut to body	Hexagon-head bolt, M8 x 34/always replace bolts following removal!	Final tightening	+ 90°
