Installing Connecting Link For Anti-Roll Bar

Information

Threaded joints must only be tightened in zero position! If this is not done, the bearings can become warped.

1. Install connecting link

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

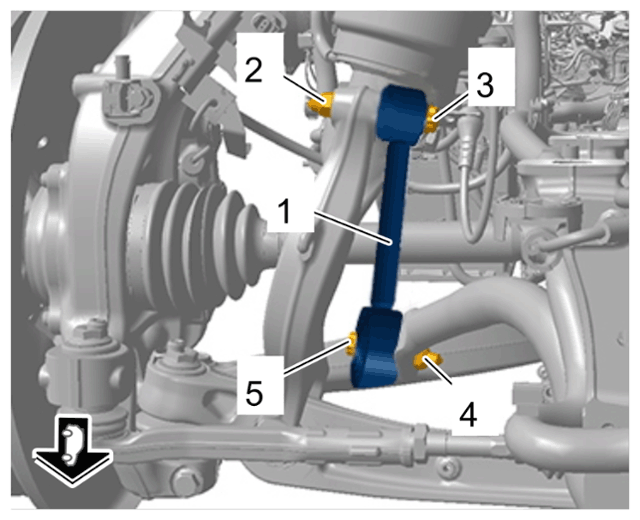

   Front anti-roll bar connecting link

   1. 1.1  Replace screws and nuts on connecting link.
   2. 1.2  Place connecting link -1-  in position.
   3. 1.3  Fit screw -5-  .
   4. 1.4  Turn the anti-roll bar as far as required until the connecting link -1-  is positioned at the wheel bearing housing.
   5. 1.5  Fit screw -3-  .
   6. 1.6  Screw on nuts -2 and 4-  .
   7. 1.7  Tighten nut -2-  .

      > Initial tightening 40 Nm (30 ftlb.)  > Final tightening + 90°

   8. 1.8  Tighten nut -4-  .

      > Initial tightening 40 Nm (30 ftlb.)  > Final tightening + 90°

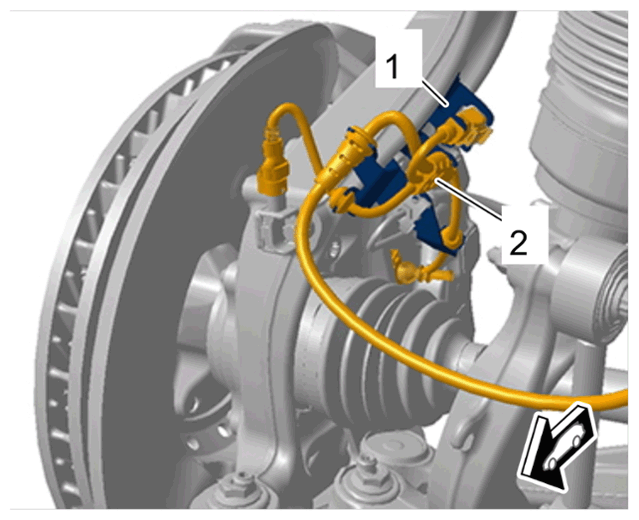

2. Fit electric lines and plug connection -2-  on holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Add-on parts - wheel bearing housing holder
