Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install front speed sensor
> 451119 REMOVING AND INSTALLING FRONT SPEED SENSOR
Secure upper trailing arms -1 and 2- . > Tightening torque 40 Nm (30 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

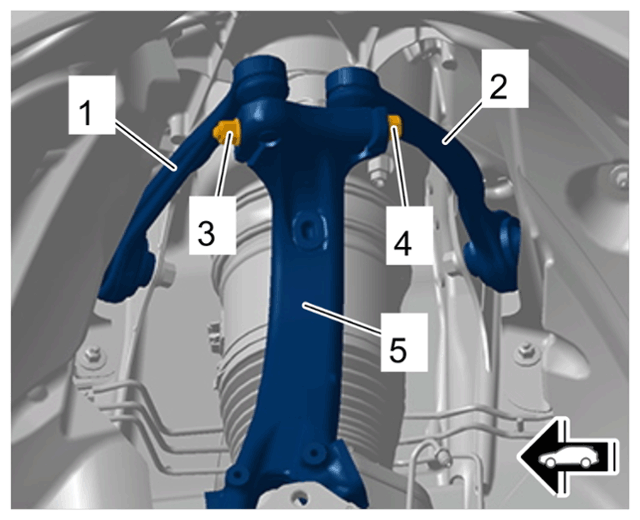

Upper trailing arms on wheel bearing housing
1. 2.1 Guide both trailing arms -1 and 2- into the openings on the wheel bearing housing -5- .
2. 2.2 Guide screw -4- into wheel bearing housing -5- .
3. 2.3 Tighten nut -3- and counter at screw -4- .
Install brake disc
> 465019 REMOVING AND INSTALLING FRONT BRAKE DISC
Fit screw on drive shaft

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

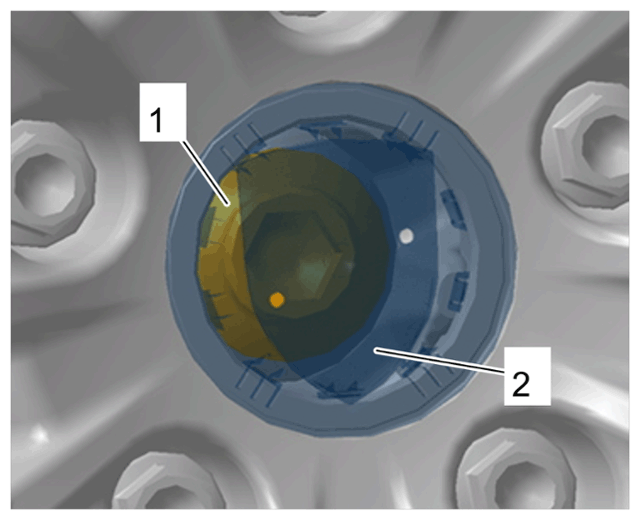

Drive shaft screw
1. 4.1 Replace screw for drive shaft
2. 4.2 Screw in and tighten new screw on drive shaft
  > Initial tightening 200 Nm (148 ftlb.)

  > Final tightening + 180°
3. 4.3 Fit hub cap -2- .
