Installing Lower Axle Joint
WARNING: This page is about a different variant/trim than selected.
- Install lower axle joint
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

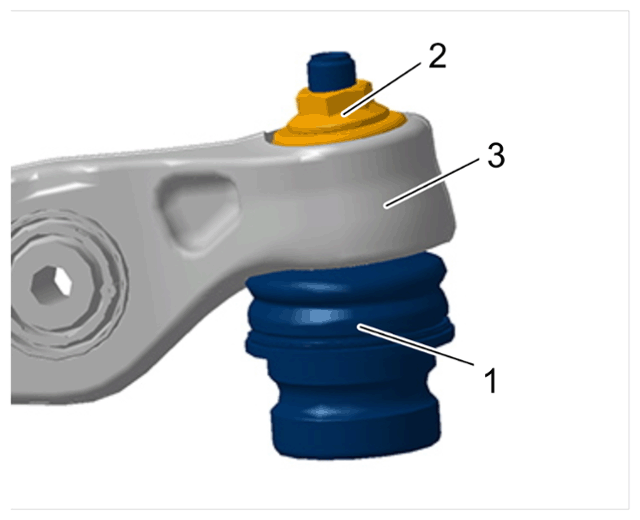

Lower axle joint
- 1.1
Insert lower axle joint -1-
into wheel bearing housing -3-
.
- 1.2
Screw on and tighten nut for lower axle joint -2-
.
> Tightening torque 140 Nm (103.3 ftlb.)
