Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Front-axle support on front axle carrier (with PDCC) | Item 1: M8 hexagon-head bold x 35 | Tightening torque | 20 Nm (14.8 ftlb.) | ||
| Front-axle support on front axle carrier | Item 2: M8 hexagon-head bold x 35 | Tightening torque | 20 Nm (14.8 ftlb.) | ||
| Front-axle support on front axle carrier | Item 3: M12 internal multipoint screw x 51/Always replace screws following removal! | Initial tightening torque | 90 Nm (66.4 ftlb.) | ||
| Front-axle support on front-axle carrier | Item 3: M12 internal multipoint screw x 51/Always replace screw following removal! | Final tightening torque | + 90° | ||
| Front-axle support on front axle carrier | Item 4: M12 hexagon-head bolt x 42/Always replace screws and 4KT nuts in cast recesses following removal! | Initial tightening torque | 90 Nm (66.4 ftlb.) | ||
| Front-axle support to front axle carrier | Item 4: M12 hexagon head bolt x 42' Always replace bolts and 4KT nuts in cast recesses following removal! | Final tightening torque | + 135° | ||
| Front-axle support of front-axle carrier (without PDCC) | Item 1: M8 internal multipoint screw x 25 | Tightening torque | 20 Nm (14.8 ftlb.) | 8 | |
|

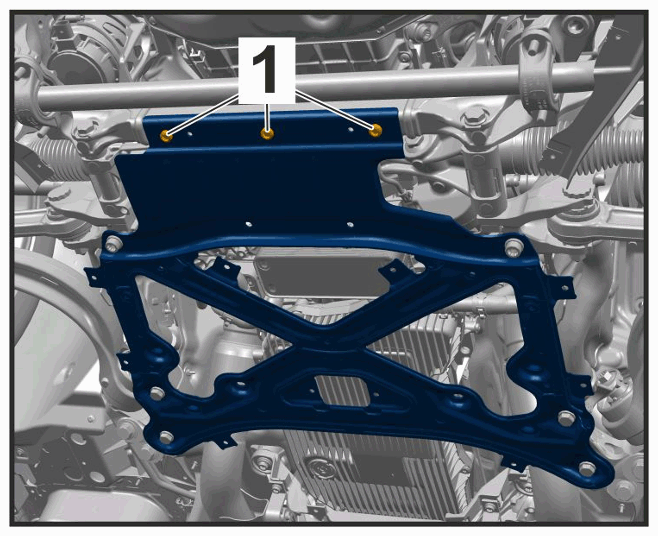

Front-axle support (vehicles without PDCC) |
|||||
| PDCC wire harness holder to front-axle support | Internal hexagon roundhead bolt, M6 x 12 | Tightening torque | 8 Nm (6 ftlb.) | ||
| PDCC wire harness holder to front-axle support | Hexagon nut, M6 | Tightening torque | 8 Nm (6 ftlb.) | ||
