Front-Axle Support (Without Pdcc)

WARNING: This page is about a different variant/trim than selected.
  1. Remove front-axle support -1-

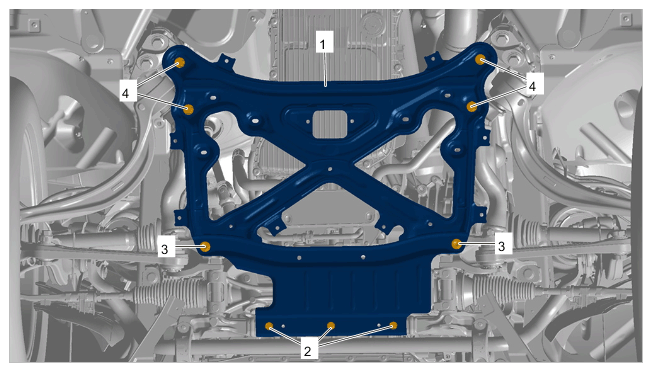

    G15288685Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front-axle support (without PDCC)

    1. 1.1  Unscrew screws -2 to 4-  and remove front-axle support
