Installing Front-Axle Support (With Pdcc)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front-axle support (PDCC)

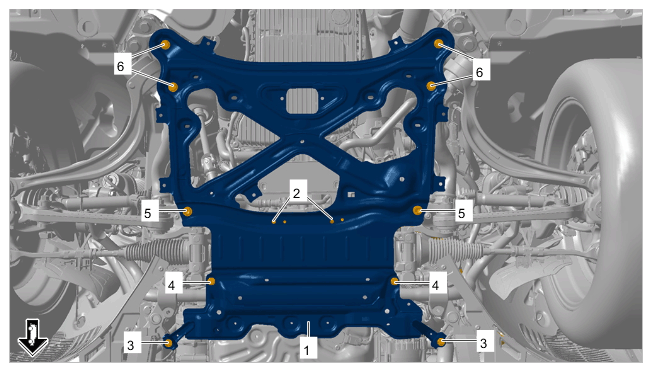

1. 1.1  Position front-axle support -1-  and fit screws -3 to 6-  .
2. 1.2  Tighten screws -3-  .

   > Tightening torque 20 Nm (14.8 ftlb.)

3. 1.3  Tighten screws -4-  .

   > Tightening torque 20 Nm (14.8 ftlb.)

4. 1.4  Tighten screws -5-  .

   > Initial tightening torque 90 Nm (66.4 ftlb.)

   > Final tightening torque + 90°

5. 1.5  Tighten screws -6-  .

   > Initial tightening torque 90 Nm (66.4 ftlb.)

   > Final tightening torque + 135°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for electric wire harness (PDCC anti-roll bar)

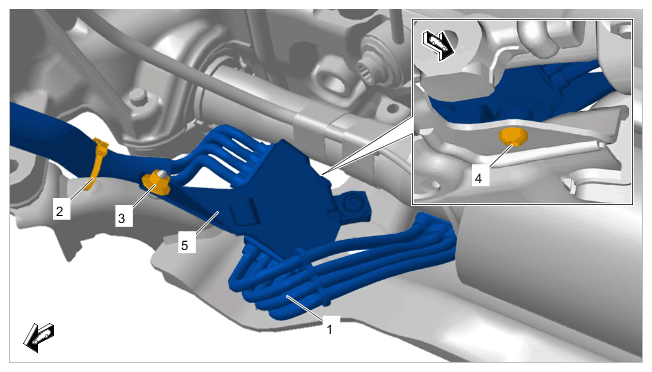

1. 2.1  Position line bracket -5-  .
2. 2.2  Tighten screw -4-  .

   > Tightening torque 8 Nm (6 ftlb.)

3. 2.3  Tighten nut -3-  .

   > Tightening torque 8 Nm (6 ftlb.)

4. 2.4  Fit tie-wrap -2-  .
