Front-Axle Support (Without Pdcc)

WARNING: This page is about a different variant/trim than selected.

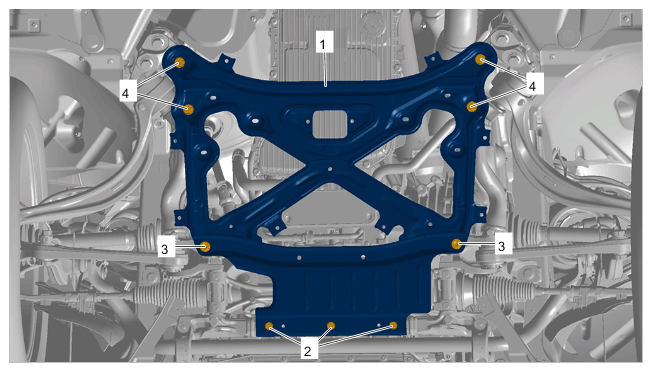

Install front-axle support -1-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front-axle support (without PDCC)
1. 1.1 Position front-axle support and fit screws -2 to 4- .
2. 1.2 Tighten screws -2- .
  > Tightening torque 20 Nm (14.8 ftlb.)
3. 1.3 Tighten screws -3- .
  > Initial tightening torque 90 Nm (66.4 ftlb.)

  > Final tightening torque + 90°
4. 1.4 Tighten screws -4- .
  > Initial tightening torque 90 Nm (66.4 ftlb.)

  > Final tightening torque + 135°
