Removing Front Axle

WARNING: This page is about a different variant/trim than selected.
WARNING: Danger of objects or loads falling down
  • Risk of squashing or crushing
    • Secure components to prevent them from falling down.
CAUTION: Heavy components
  • Risk of squashing
    • Wear personal protective gear.
    • Get someone to help if necessary.
  1. Remove side member

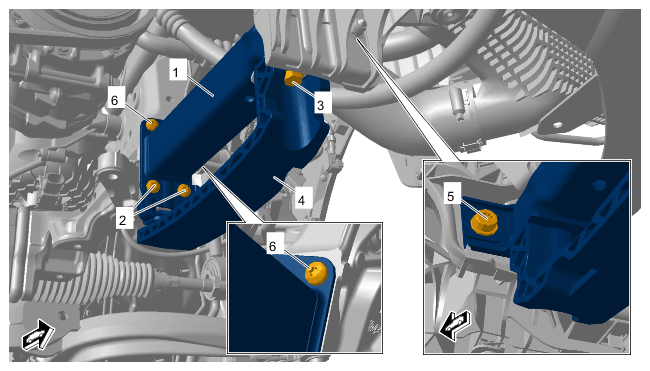

    G15288655Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Longitudinal member

    1. 1.1  Unscrew screws -2-  .
    2. 1.2  Unscrew screw -3-  and remove slide -4-  .
    3. 1.3  Unscrew screw securing lock carrier to longitudinal member -5-  .
    4. 1.4  Unscrew screws -6-  and remove longitudinal member
  2. Disconnect electric wire harness for power steering

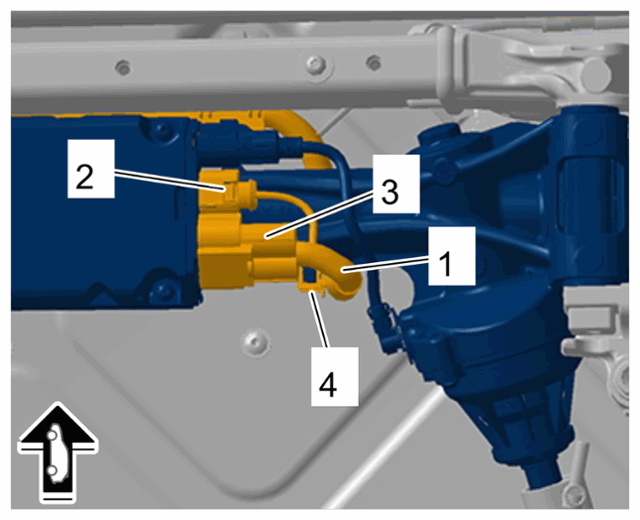

    G15288656Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness for power-steering gear

    1. 2.1  Release and disconnect electric plug connection of power steering -2 and 3-  .
    2. 2.2  Unclip line clip -4-  .
    3. 2.3  Set electric wire harness for power steering -1-  aside.
  3. Unclip clips -1 and 2-  on front axle carrier.

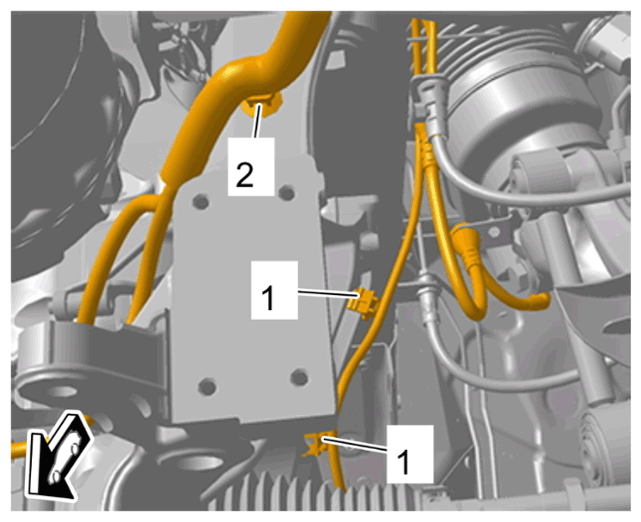

    G15288657Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Clips on front-axle carrier

  4. Loosen line bracket

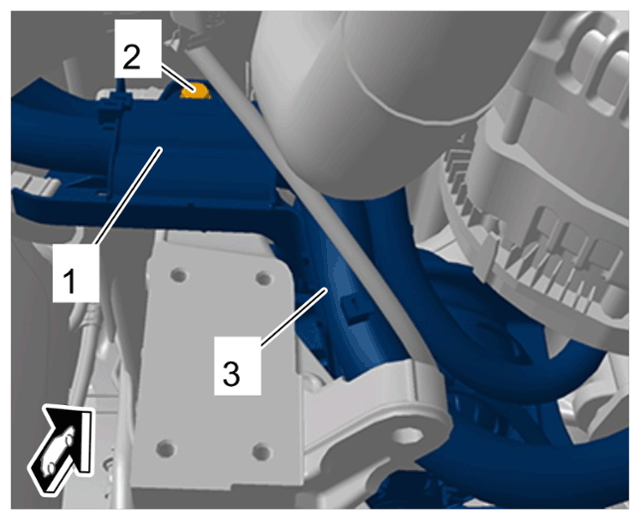

    G15288658Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wiring holder

    1. 4.1  Unscrew screw for line bracket -2-  .
    2. 4.2  Set line bracket -1-  with electric wiring harness -3-  aside.
  5. Disconnect electric plug connections -1 and 2-  .

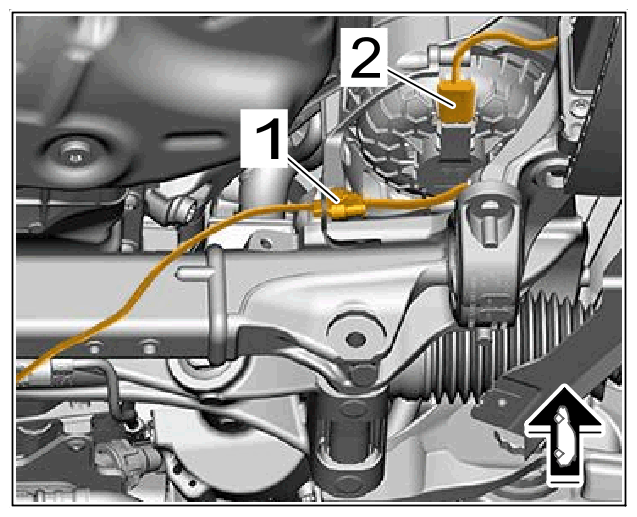

    G15288659Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections for engine mount

    1. 5.1  Detach, unlock and disconnect the electrical plug connection -1-  from the holder.
    2. 5.2  Release and disconnect electric plug connections -2-  .
  6. Only for vehicles with supporting mounts:

    Unscrew screws securing supporting mount to front axle carrier -1-

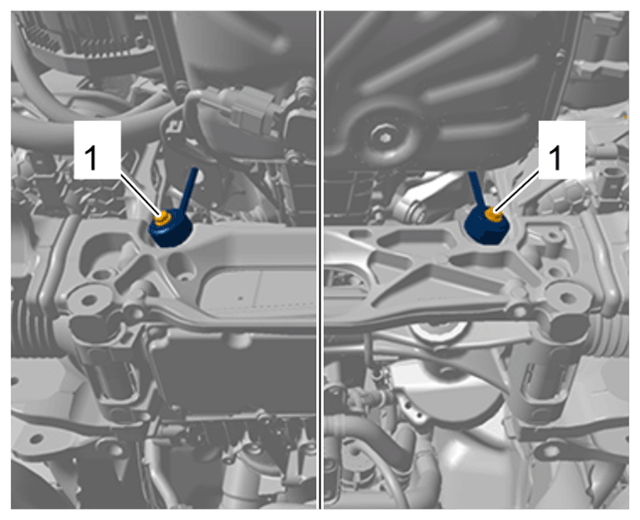

    G15288660Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Threaded joint for supporting mount

  7. Unscrew screw on engine carrier -1-

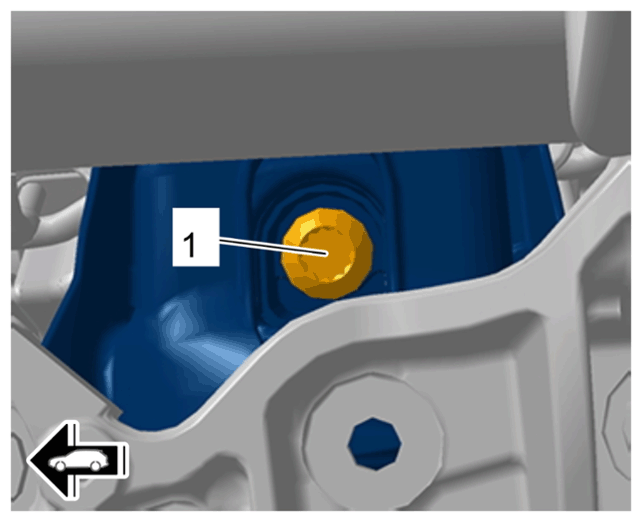

    G15288661Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw securing engine carrier to engine mount

  8. Secure front axle carrier

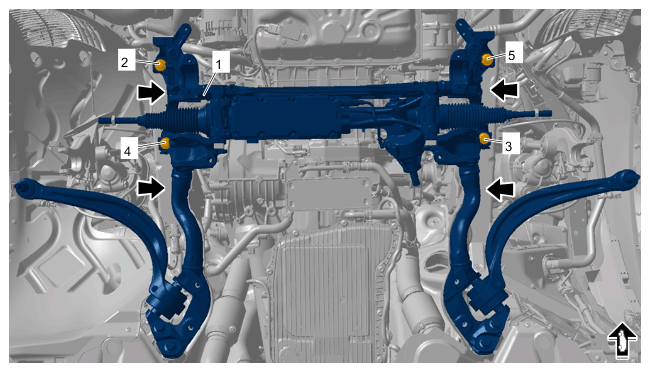

    G15288662Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Securing front-axle carrier

    1. 8.1  Position > VAS 6931 - engine and gearbox jack  with > T40173A - gearbox support  under the front axle carrier -1-  and align it -Arrows-  .
    2. 8.2  Support the front axle using > VAS 6931 - engine and gearbox jack  and secure the front axle carrier -1-  with a tension strap.
    3. 8.3  Unscrew screw -2-  , replace it with > T40327 - locating pin  and tighten > T40327 - locating pin  to 20 Nm.
    4. 8.4  Repeat procedure for screws -3 to 5-  one after the other.

      Information

      You will need a second mechanic to help you with this step.

  9. Remove front axle

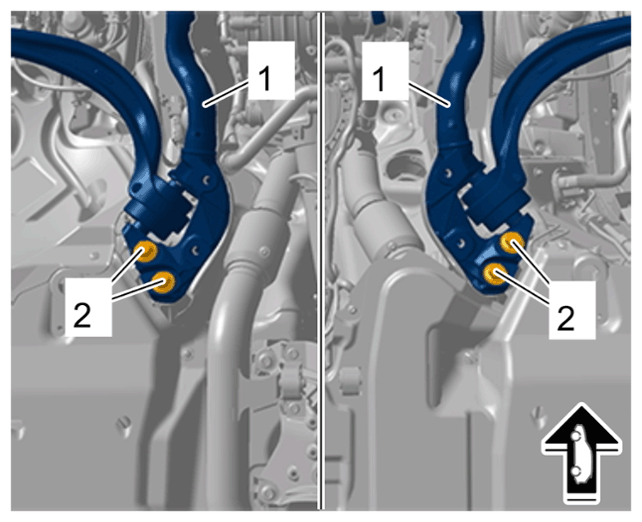

    G15288663Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear screw on front axle carrier

    1. 9.1  Unscrew rear screws on front axle carrier -2-  .
    2. 9.2  Lower the front axle -1-  on > VAS 6931 - engine and gearbox jack  , getting another person to help to guide it down.
    3. 9.3  Remove front axle -1-  from > VAS 6931 - engine and gearbox jack  with the help of another person and set it down carefully.
