Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Disconnect 48 V vehicle electrical system.
> Work instruction for 48 V vehicle electrical system
Support the engine.
> 1001IN SUPPORTING ENGINE ON THE BODY (ENGINE SAFETY DEVICE)
Remove front wheels.
> Removing and fitting wheel
Remove wheel housing liner front.
> Removing and installing wheel housing liner front

Information
- One-piece or two-piece heat protection is installed, depending on engine type.
- The one-piece heat protection is described here; the two-piece heat protection must also be completely removed.

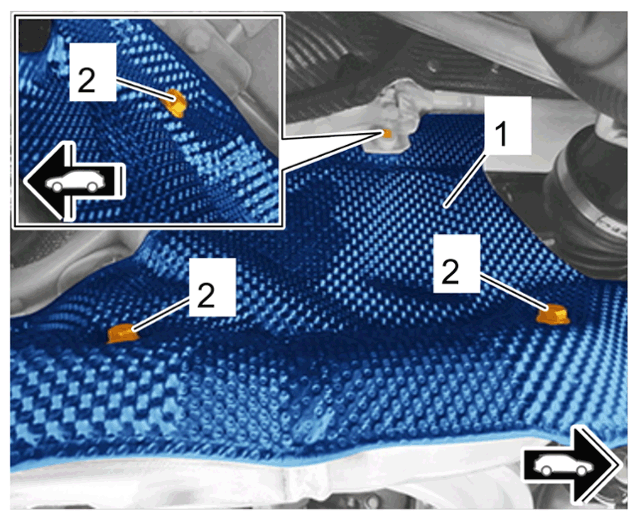

Remove heat shield

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield
1. 5.1 Unscrew screws on heat shield -2- .
2. 5.2 Remove heat shield
Remove front level sensors.
> Replacing front level sensor
Remove front stabilizer.
Vehicles with PDCC:

> Removing and installing front anti-roll bar (PDCC)

Vehicles without PDCC:

> Removing and installing front stabilizer
Remove power steering gear.
> 489019 REMOVING AND INSTALLING POWER STEERING GEAR
Install lower trailing arm.
> 401719 REMOVING AND INSTALLING LOWER TRAILING ARM
Remove upper control arm.
> 401819 REMOVING AND INSTALLING CONTROL ARM
Remove tie-rod ends.
> Removing and installing tie-rod end
