Replacing Crankshaft Sealing Ring - Belt Side: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
- → Let hot components cool down.
- → Wear personal protective gear.

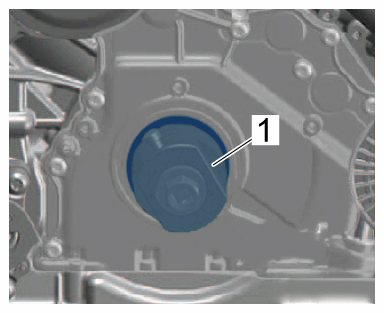

Removing crankshaft sealing ring - belt side using > T40019 - oil seal extractor (-1-) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

T40019 - Oil seal extractor
1. 1.1 Set the inner part of the > T40019 - oil seal extractor (-1-) so that it is flush with the outer part, and lock the inner part with the knurled screw.
2. 1.2 Oil the threaded head of the > T40019 - oil seal extractor (-1-) , position it and use sufficient force to screw it as far as possible into the sealing ring.
3. 1.3 Loosen the knurled screw and turn inner part against the crankshaft until the sealing ring for the crankshaft pulley is pulled out.
4. 1.4 > T40019 - Oil seal extractor (-1-) must be clamped on the flattened areas in a vice. Then, remove crankshaft sealing ring - belt side using pliers.
Carefully clean running and sealing faces.
