Removing Drive Plate
WARNING: This page is about a different variant/trim than selected.
NOTIFICATION
Dirt and contamination
- Risk of damage to units or components
- → Protect components from dirt and contamination.
- → Clean or replace dirty components.
- Remove drive plate -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

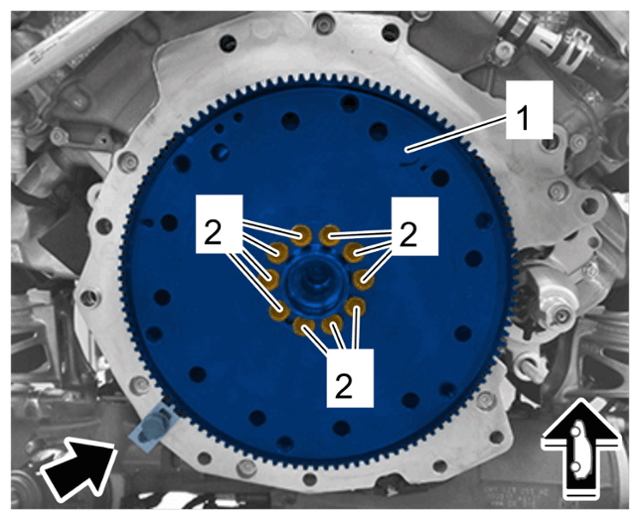

Drive plate
- 1.1
> VAS 6766 - Counterhold tool
must be secured as shown -Arrow-
.
- 1.2
Unscrew screws -2-
and remove drive plate -1-
.
- 1.3
> VAS 6766 - Counterhold tool
must now be removed.
