Removing Cylinder Head Cover - Left Cylinder Bank

WARNING: This page is about a different variant/trim than selected.

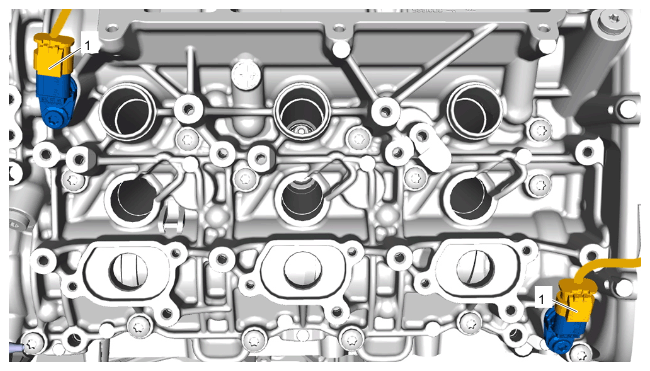

  1. Release and disconnect electric plug connections for camshaft sensors -1-  .
    G15209214Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections for camshaft sensors

  2. Remove cylinder head cover -20-  .

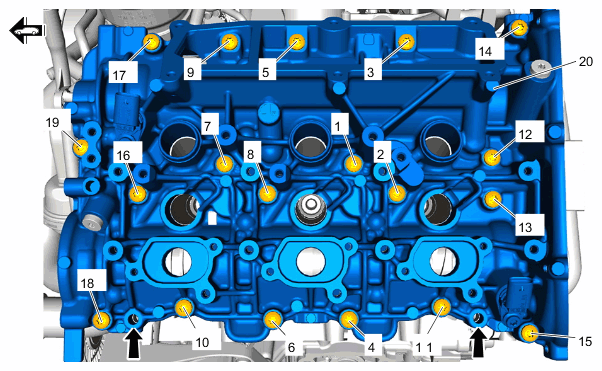

    Fig 1: Cylinder Head Cover On Left Cylinder Bank Screws Loosening Sequence
    G15209215Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cylinder head cover on left cylinder bank

    1. 2.1  Unscrew screws on cylinder head cover -1 to 19-  .
    2. 2.2  Screw two screws (M8 x 25) into the threaded bores -Arrows-  by hand.
    3. 2.3  Tighten screws alternately by half a turn until the cylinder head cover -20-  is loosened.
    4. 2.4  Remove cylinder head cover -20-  .
