Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Screw for solenoid hydraulic valve for valve lift adjustment | Replace following removal. | Initial tightening | 3 Nm (2 ftlb.) | ||
| Screw for solenoid hydraulic valve for valve lift adjustment | Replace following removal. | Torque angle | + 90° | ||
| Screw-type clamp on pressure pipe | Tightening torque | 5.5 Nm (4 ftlb.) | |||
| Screw for torque support bracket | M8 x 55/(V6 Turbo: M8 x 45) | Tightening torque | 23 Nm (17 ftlb.) | ||
| Torque support bracket upper part to lower part | M10 x 35 | Tightening torque | 55 Nm (41 ftlb.) | ||
| Ground lines for right cylinder head | Item 1 | Tightening torque | 9 Nm (6.5 ftlb.) | ||
|

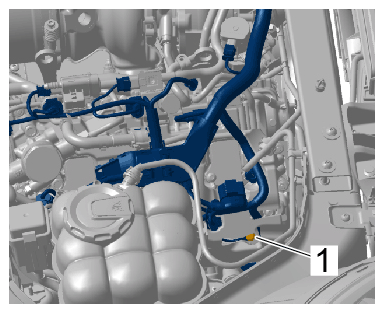

Ground line for right cylinder head |
|||||
|

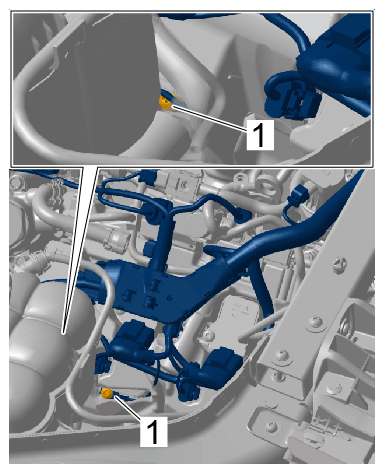

Ground line for right cylinder head, bottom |
|||||
