Installing (Left) Oil Separator

WARNING: This page is about a different variant/trim than selected.

Installation is performed in reverse order. Pay particular attention to the following:

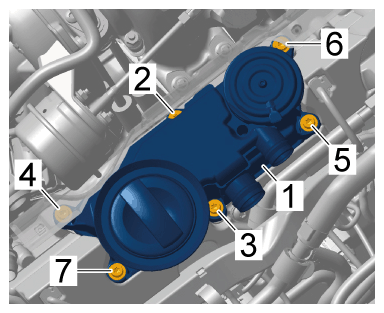

Fig 1: Oil Separator Screws Tightening Sequence (Left)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Oil separator (left)
1. 1.1 Clean sealing surfaces.
2. 1.2 Replace seals.
3. 1.3 Tighten screws in the tightening sequence -2 to 7- .
  > Tightening torque 9 Nm (6.5 ftlb.)
