Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Engine mount bolt on engine support | M12 x 1.5 x 70/replace | Initial tightening | 90 Nm (66.4 ftlb.) | ||
| Engine mount bolt on engine support | Final tightening | + 90° | |||
| Engine mounting bolt on front axle carrier | M8 x 50 | Tightening torque | 30 Nm (22.1 ftlb.) | ||
| Engine mounting bolt on front axle carrier | M10 x 50 | Tightening torque | 55 Nm (40.6 ftlb.) | ||

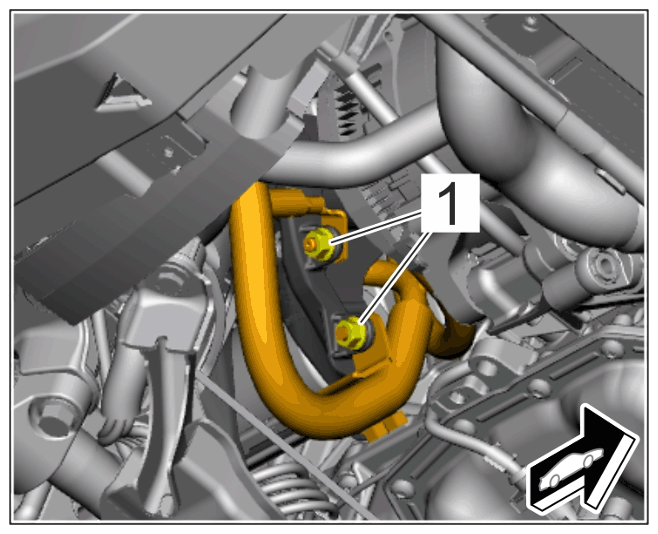

| Ground line on engine carrier | Item 1 | Tightening torque | 20 Nm (14.8 ftlb.) | ||
|
Ground line on engine carrier |
|||||
| Screw for left wheel housing coolant pipe | Tightening torque | 9 Nm (6.5 ftlb.) |
