Installing Crankcase Cover

WARNING: This page is about a different variant/trim than selected.

Press crankshaft sealing ring out of the crankcase cover.
Clean the crankcase.
1. 2.1 Remove residual sealant.
2. 2.2 Clean sealing faces with primer Loctite 7515.
Prepare crankcase cover.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Applying sealant on crankcase cover
1. 3.1 Remove residual sealant.
2. 3.2 Clean sealing faces with primer Loctite 7515.
3. 3.3 Replace O-ring.

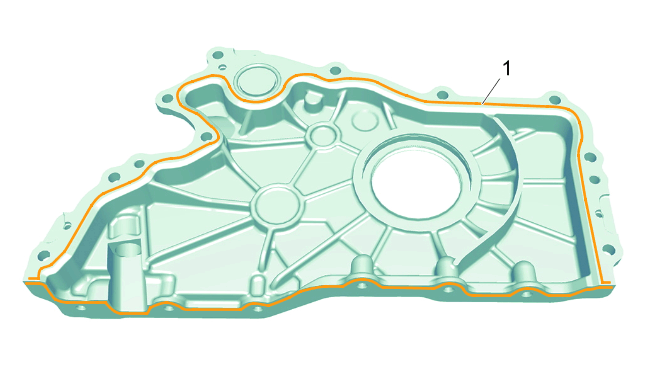

4. 3.4 Apply liquid sealant Loctite 5970-BM -1- on the crankcase cover.
Install crankcase cover.

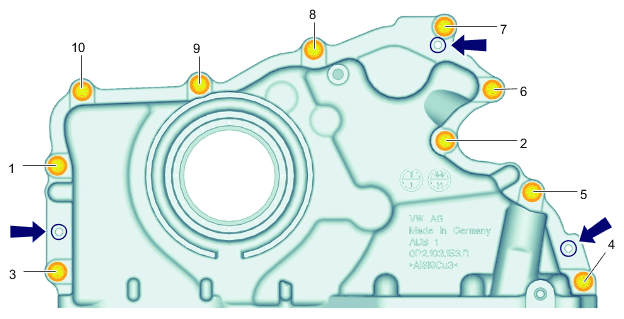

Fig 1: Crankcase Cover Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Crankcase cover
1. 4.1 Fit crankcase cover uniformly on the oil guide housing and crankcase.
2. 4.2 Screw in screws -1 to 10- as far as they will go by hand.
3. 4.3 Tighten screws in the sequence -1 to 10- .
  > Tightening torque 9 Nm (6.5 ftlb.)
