Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Wheel to wheel hub | M14 x 1.5 x 49 thread/do not grease screw | Tightening torque | 160 Nm (118 ftlb.) | ||

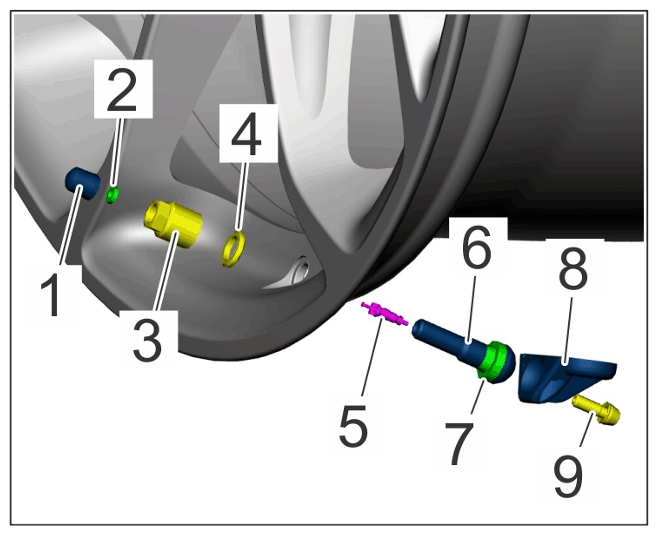

| Wheel electronics unit to TPM valve | Item 9: Torx screw, M5 x 11/replace | Tightening torque | 4 Nm (3 ftlb.) | ||
|
Wheel valve |
|||||
| TPM valve to wheel | item 3: MM5 union nut | Tightening torque | 4 Nm (3 ftlb.) | ||
|
Wheel valve |
|||||
