Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Brake cover plate to wheel bearing housing	Item 2: Internal hexagon roundhead bolt M6 x 14	Tightening torque	10 Nm (7.4 ftlb.)

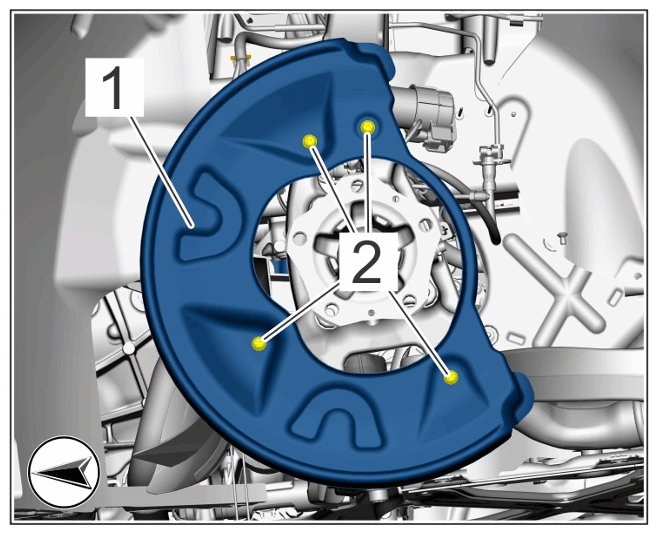

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake cover plate, front
Front brake disc to wheel hub	Item 2: Counter sunk screw, M6 x 12 (micro-self-locking)/always replace screws following removal!	Tightening torque	8 Nm (5.9 ftlb.)

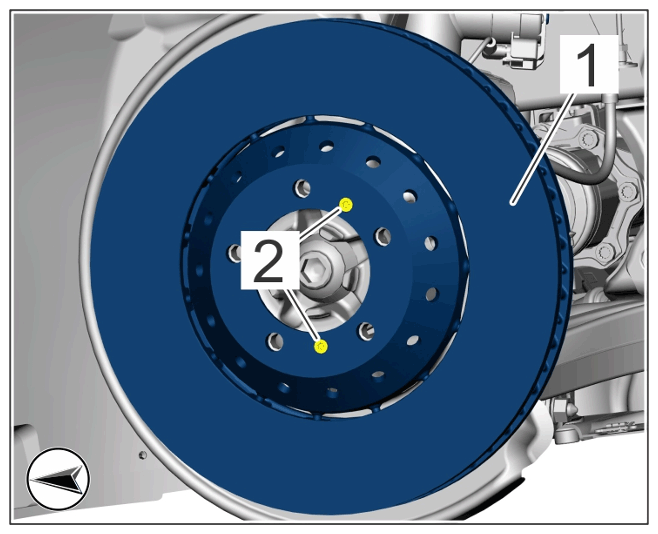

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake disc front (view of grey cast-iron brakes)
Brake cover plate to brake mounting plate (grey cast-iron brake)	Item 2: Internal hexagon roundhead bolt M6 x 14	Tightening torque	10 Nm (7.4 ftlb.)

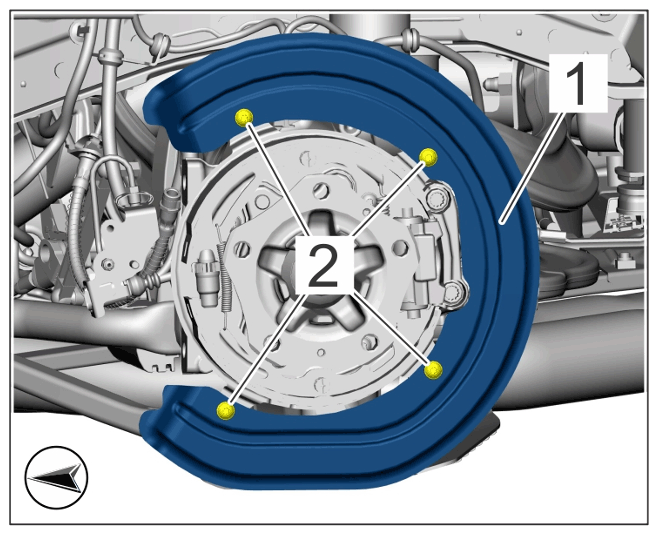

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake cover plate to mounting plate (grey cast-iron brake)
Brake cover plate to brake mounting plate (PCCB brake)	Item 2: Internal hexagon roundhead bolt M6 x 14	Tightening torque	10 Nm (7.4 ftlb.)

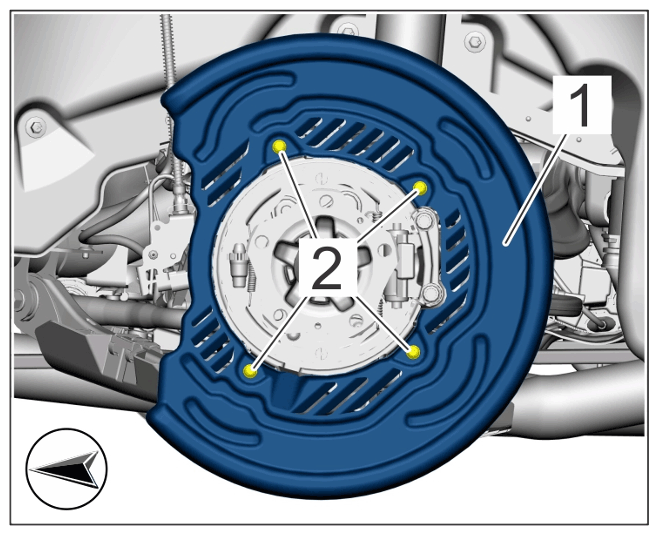

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake cover plate rear (PCCB brakes)
Brake mounting plate to wheel bearing housing	Internal hexagon roundhead bolt, M6 x 14	Tightening torque	8 Nm (5.9 ftlb.)
Rear brake disc to wheel hub	Item 2: Counter sunk screw, M6 x 12 (micro-self-locking)/always replace screws following removal!	Tightening torque	8 Nm (5.9 ftlb.)

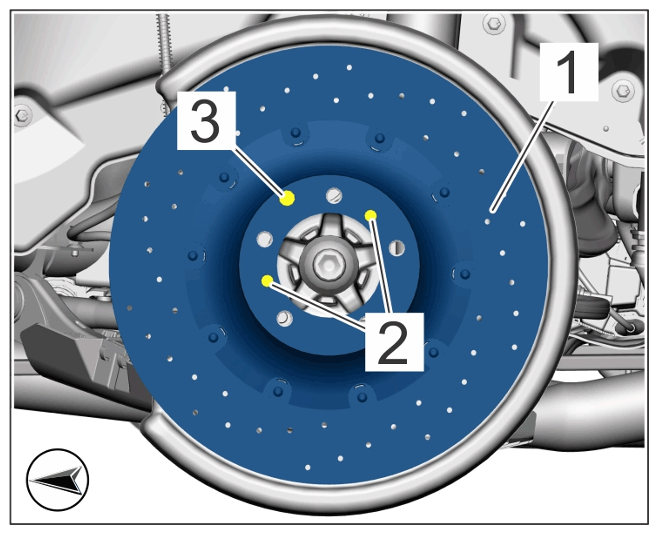

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake disc rear (view of PCCB)
Plug for brake disc	Item 3: M12 x 5 thread	Tightening torque	15 Nm (11.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake disc rear (view of PCCB)
Actuator (electric parking brake) to wheel bearing housing	Item 2: Internal serration screw M10 x 40/Always replace screws following removal	Initial tightening	20 Nm (14.8 ftlb.)

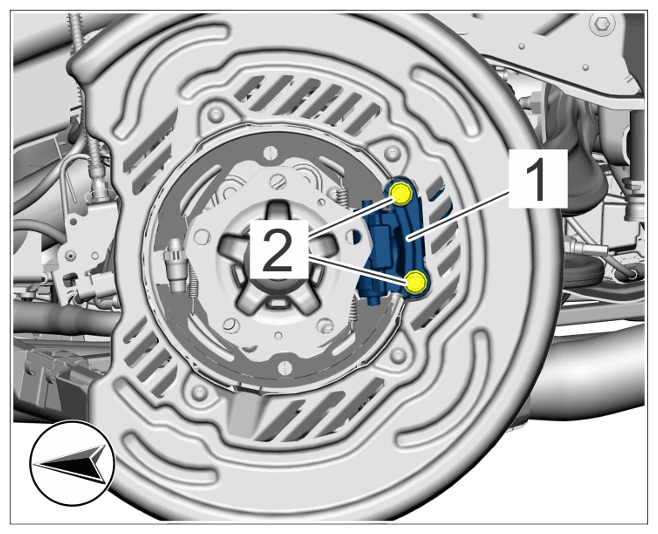

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric parking brake actuator
Actuator (electric parking brake) to wheel bearing housing	Item 2: Internal multipoint screw M10 x 40/Always replace screw following removal!	Final tightening torque	+ 60°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric parking brake actuator
Mounting saddle to firewall	Hexagon nut, M6	Tightening torque	8 Nm (6 ftlb.)
Mounting saddle to retaining frame	Hexagon-head bolt, M8 x 35	Tightening torque	20 Nm (15 ftlb.)
Accelerator pedal box to mounting saddle	Internal hexagon roundhead bolt, M6 x 18	Tightening torque	8 Nm (6 ftlb.)
Locking screw for brake pedal shaft	Internal hexagon roundhead bolt, M6 x 18	Tightening torque	8 Nm (6 ftlb.)
Actuator for electric parking brake to centre console	Tapping screw	Tightening torque	1.5 Nm (1 ftlb.)
