Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value
Speed sensor front to wheel bearing housing	Item 1: Cheese head bolt M6 x 16	Tightening torque	9 Nm (6.6 ftlb.)

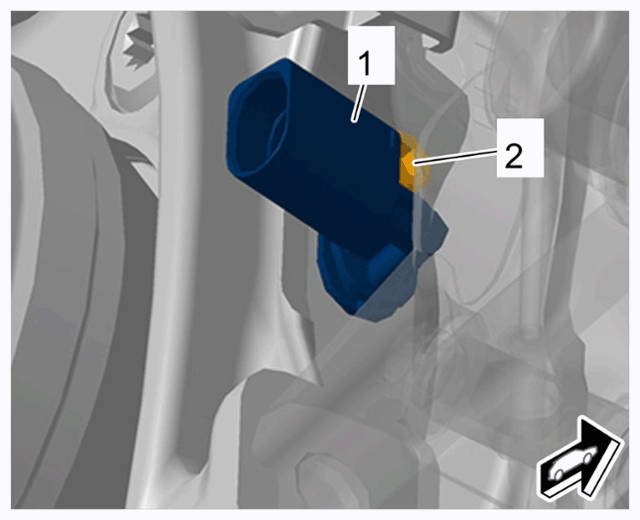

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front speed sensor
Speed sensor rear to wheel bearing housing	Item 2: Cheese head bolt M6 x 16	Tightening torque	9 Nm (6.6 ftlb.)

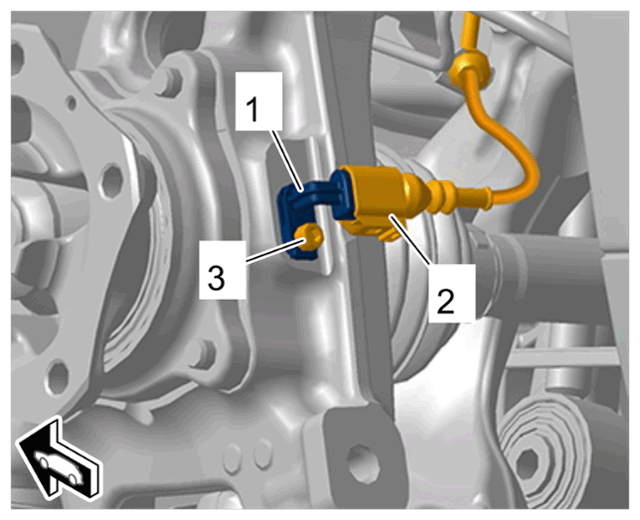

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear speed sensor
Hydraulic unit to holder	Item 2: Hexagon-head bolt M10 x 16	Tightening torque	25 Nm (18.4 ftlb.)

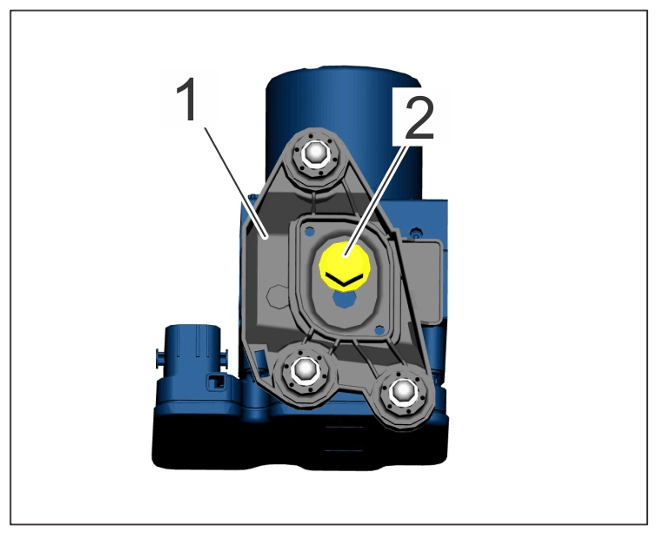

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Hydraulic unit to holder
Holder for hydraulic unit to body	Item 2: Hexagon-head bolt M6 x 16	Tightening torque	3.8 Nm (2.8 ftlb.)

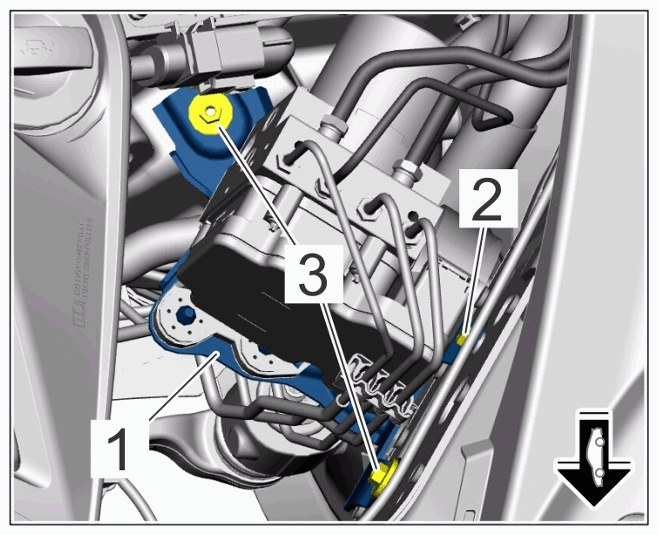

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder to body
Holder for hydraulic unit to body	Item 3: Hexagon nut M6	Tightening torque	3.8 Nm (2.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder to body
