Removing Coolant Temperature Sensor (Engine Outlet)

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding

    → Avoid contact with hot fluid.

    → Wear personal protective gear.

  1. Remove coolant temperature sensor -1-  .

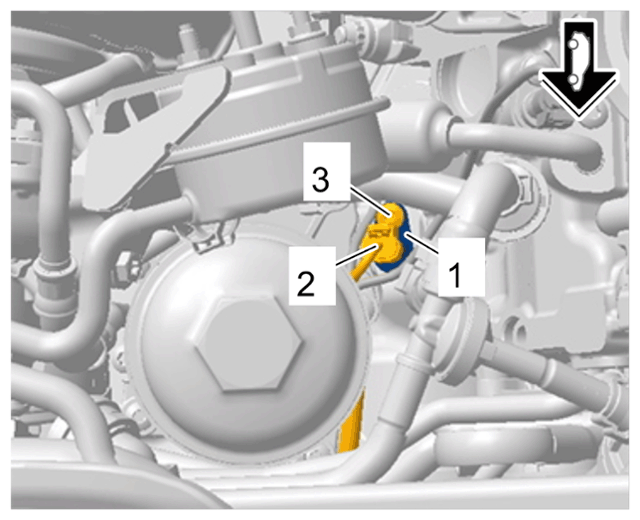

    G15209452Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant temperature sensor (engine outlet)

    1. 1.1  Have suitable aids ready for catching any emerging coolant.
    2. 1.2  Release and disconnect electric plug connection -2-  .
    3. 1.3  Unscrew screw on coolant temperature sensor -3-  .
    4. 1.4  Remove coolant temperature sensor -1-  .
    5. 1.5  Collect emerging coolant.
