Removing Coolant Temperature Sensor (Cylinder Housing)

WARNING: This page is about a different variant/trim than selected.
WARNING: Hot fluid
  • Danger of scalding

    → Avoid contact with hot fluid.

    → Wear personal protective gear.

  1. Remove coolant temperature sensor -1-  .

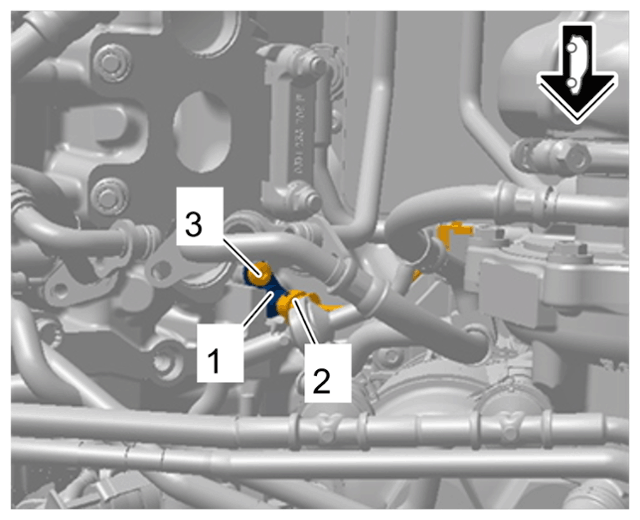

    G15209454Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant temperature sensor for controlling engine temperature

    1. 1.1  Have suitable aids ready for catching any emerging coolant.
    2. 1.2  Release and disconnect electric plug connection -2-  .
    3. 1.3  Unscrew screw -3-  .
    4. 1.4  Remove coolant temperature sensor -1-  .
    5. 1.5  Collect emerging coolant.
