Removing Radiator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

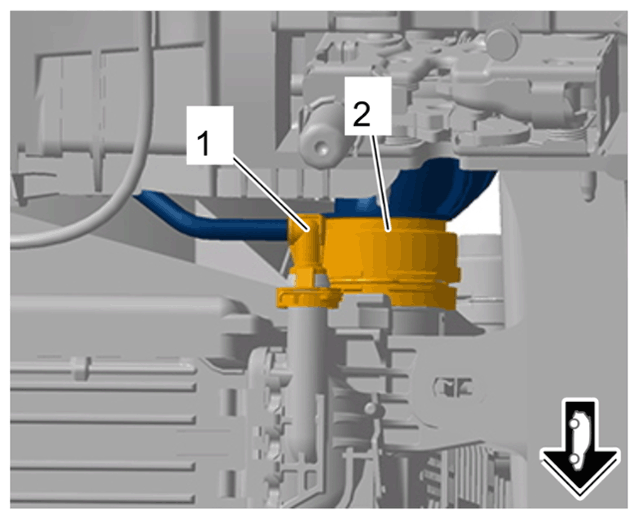

Coolant connections at top of radiator

1. 2.1  Release and disconnect line connection for vent line -1-  .
2. 2.2  Release and disconnect line connection for coolant hose -2-  .
3. 2.3  Close off connections with stoppers.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

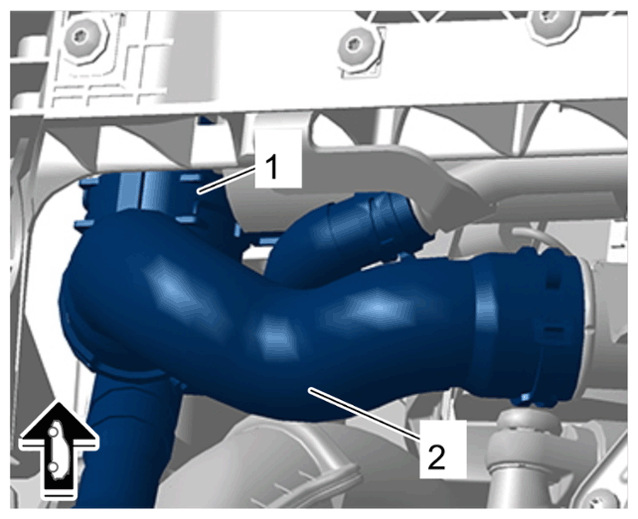

Coolant connection, bottom

1. 3.1  Release and disconnect line connection for lower coolant hose -1-  .
2. 3.2  Close off connections with stoppers.
3. 3.3  Move lower coolant hose -2-  aside so that the electric plug connections for the radiator fans are accessible.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

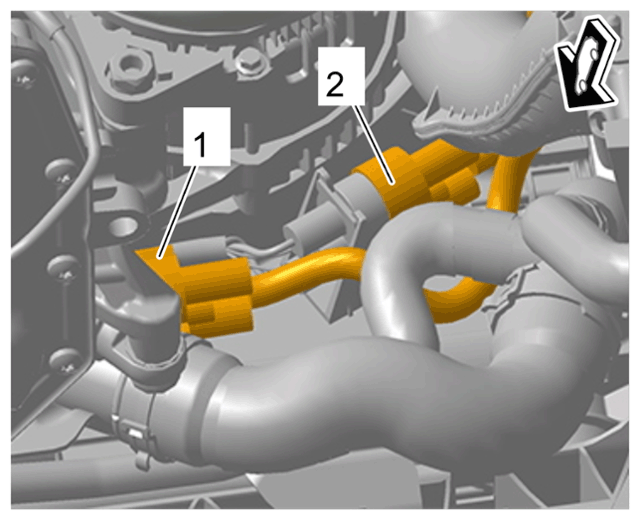

Electric plug connections for radiator fans

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

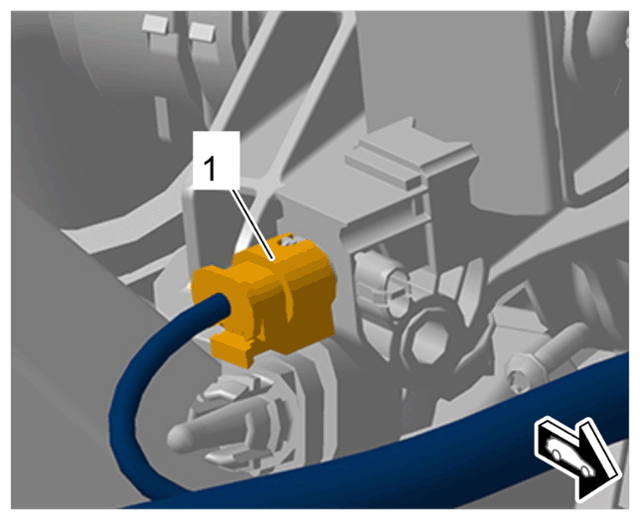

Electric plug connection for radiator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

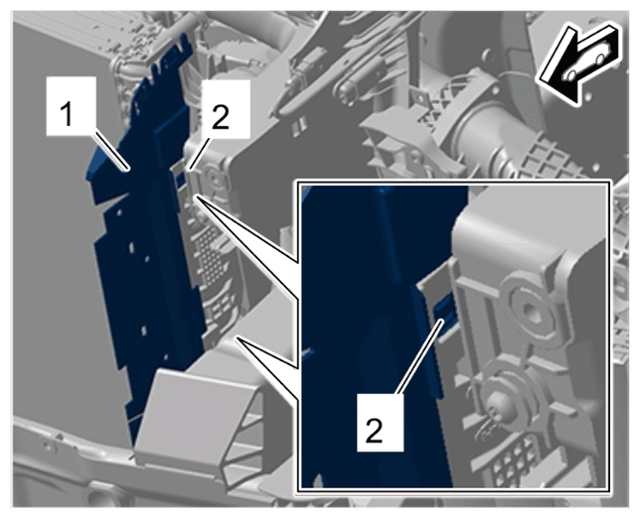

Side trim panels on radiator

1. 6.1  Release locking lugs -2-  on the trim panels -1-  .
2. 6.2  Pull trim panels -1-  forward off the radiator.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

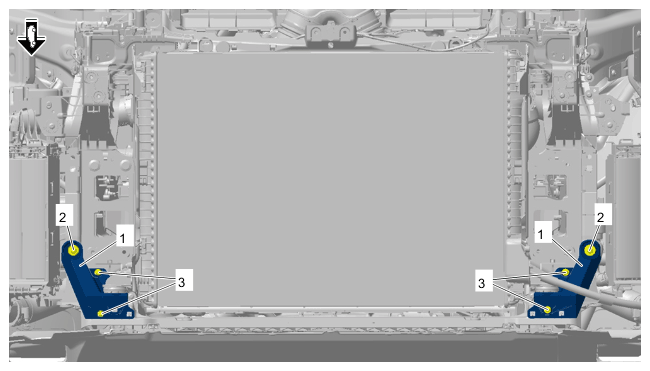

Radiator holders

1. 7.1  Unscrew and remove screws -2 and 3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

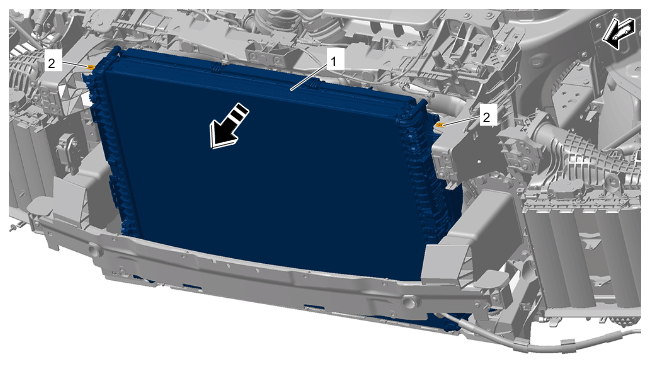

Removing radiator

1. 8.1  Release retaining clips for radiator -2-  and remove upwards.
2. 8.2  Carefully tilt the radiator -1-  forward -Arrow-  .
3. 8.3  Guide out radiator -1-  together with radiator frame by moving it forward at the top.
