Removing Control Valve

Information

The pictures and graphics shown may differ from the original depending on engine variants, additional equipment and/or country specifications.

However, the technical accuracy of the specifications is guaranteed.

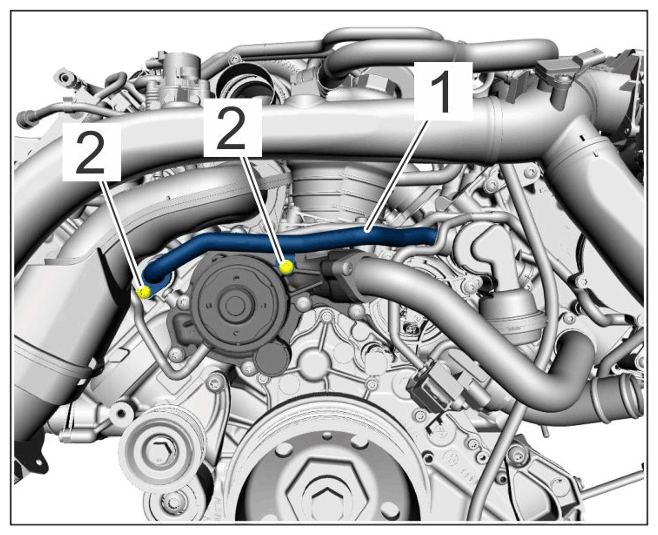

1. Disconnect coolant line -1-  .
   1. 1.1  Loosen screw -2-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Coolant line

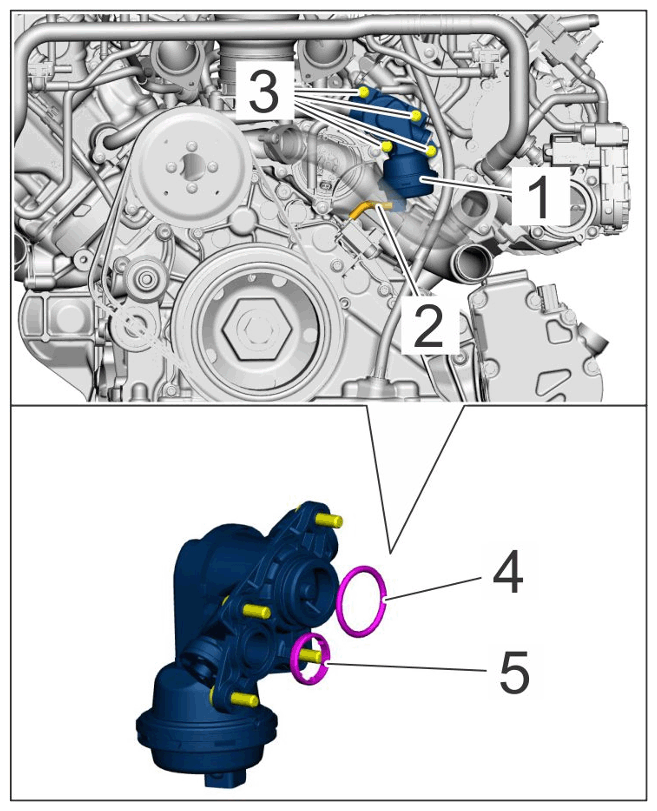

2. Remove control valve -1-  .
   1. 2.1  Pull off vacuum hose -2-  .
   2. 2.2  Unscrew screws -3-  .
   3. 2.3  Pull coolant line out of the control valve -1-  and remove control valve -1-  .
   4. 2.4  Catch emerging coolant.
   5. 2.5  Replace O-ring -4-  and seal -5-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Control valve
