Removing Pulley

WARNING: This page is about a different variant/trim than selected.

Information

The pictures shown in this document may differ from the original.

  1. Loosen pulley -1-  .
    1. 1.1  Only loosen screws -2-  .
      G15209414Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Pulley

  2. Depending on model:

    Loosen the generator drive belt.

    > 137819 REMOVING AND INSTALLING DRIVE BELT (V6)

  3. Remove pulley -1-  .
    1. 3.1  Remove screws -2-  .
    2. 3.2  Remove pulley -1-  .

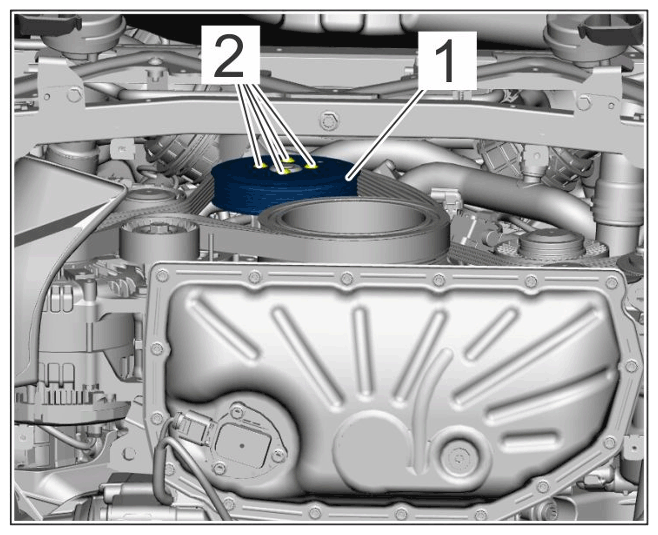

      G15209415Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Pulley
