Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove front apron.

    > 631519 REMOVING AND INSTALLING FRONT APRON

  2. Remove side part of front air guide -1-  at the left and right.

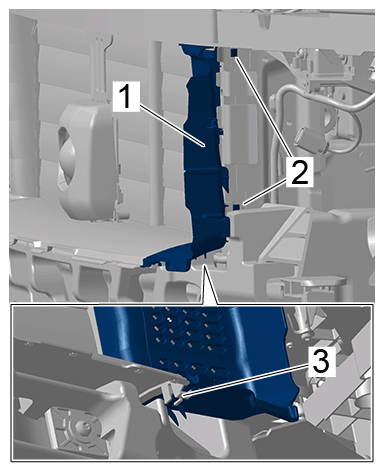

    G15209360Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Side part of front air guide

    1. 2.1  Unclip top clips -2-  and bottom clip -3-  on side part of front air guide -1-  .
    2. 2.2  Remove side part of front air guide -1-  .
  3. Remove sound absorber on bumper -1-  .

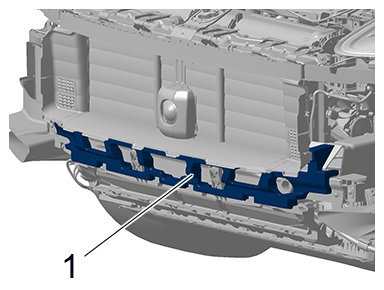

    G15209361Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sound absorber on bumper
