Removing And Installing Temperature Sensor For Fan
WARNING: This page is about a different variant/trim than selected.

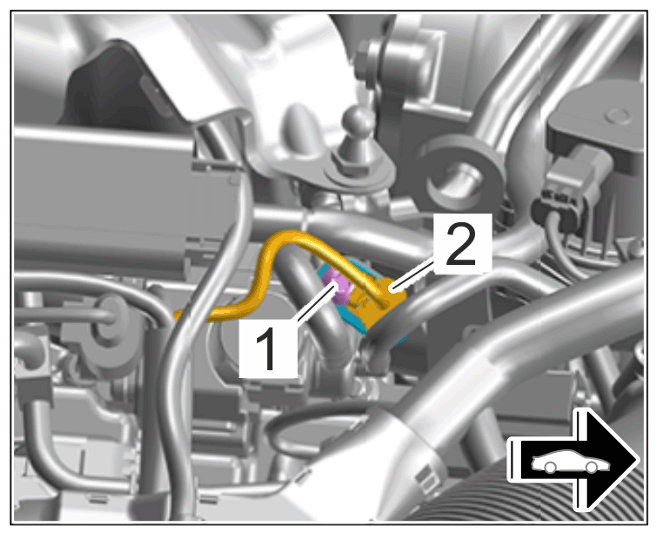

- Disconnect electric plug connection -2-
. Unscrew screw -1-
and remove temperature sensor.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Temperature sensor for fan
- 1.1
Installation is performed in reverse order to removal.
> Tightening torque 9 Nm (6.5 ftlb.)
