Checking Antifreeze In Coolant
WARNING: This page is about a different variant/trim than selected.
- Check antifreeze content.
Checking antifreeze content

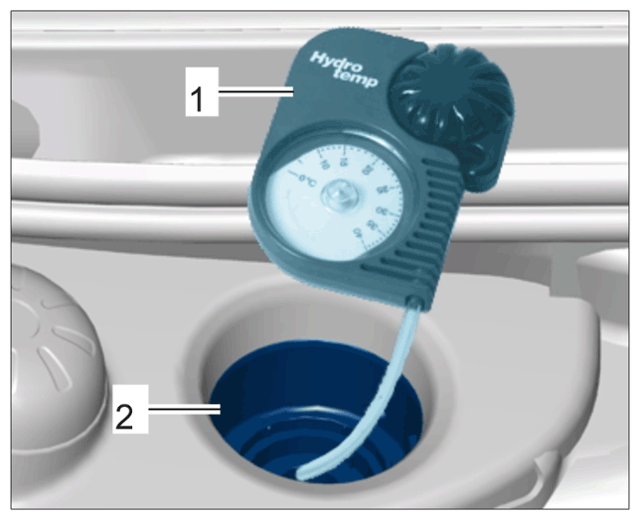

- 1.1 Check antifreeze content using antifreeze tester -1- .
- 1.2 If the antifreeze content is above -35°C, correct it by increasing the proportion of pure coolant as required.
Coolant mixture ratio
- 40% coolant and 60% distilled water for antifreeze protection up to -25°C
- 50% coolant and 50% distilled water for antifreeze protection up to -36°C
| Measured antifreeze protection in °C | Antifreeze quantity to be added (in litres) |
|---|---|
| - 5 | 9 |
| - 10 | 8.5 |
| - 15 | 7.5 |
| - 20 | 7 |
| - 25 | 5 |
| - 30 | 3.5 |
| - 35 | 1.5 |
